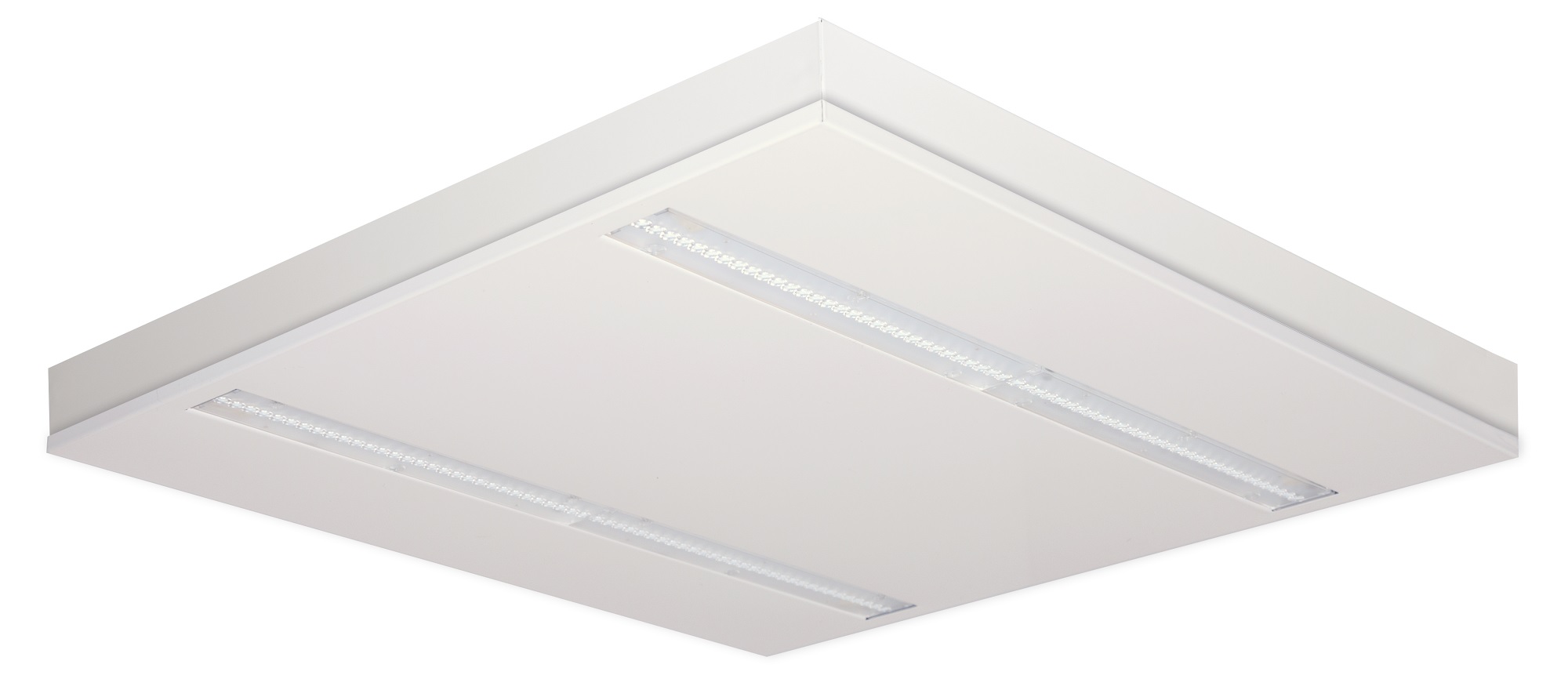

OFFICE COMPLIANT SURFACED LED LUMINAIRE

Description:
Surfaced mounted luminaire with high efficiency LED modules and high light-transmission optics (lenses) for the ultimate illumination of offices. The use of optics secures a Unified Glare Rating UGR<19 and luminaire efficacy of up to 156lm/W making it ideal for the illumination of offices.

Applications:
Offices, Design labs, libraries, schools etc.

Options on request:
Dimming 1-10V
DALI
Emergency 1 or 3 hours

Construction:
Base - Cold rolled steel 0,5mm with white epoxy polyester powder coating for maximum reflection and excellent gloss finish
Light source - Highly efficient mid-power light engine (171lm/W)
Gear - Constant Current Driver 220-240V/50-60Hz
Optics - High Light Transmission PMMA
Wires - Single Core with Heat resistant PVC insulation at 105oC

Directives and Standards:
ISO 9001:2015 Quality Management System
2014/35/EU Low Voltage Directive
2014/30/EU Electromagnetic Compatibility Directive
2011/65/EU RoHS Restrictions of Hazardous Substances Directive EN 60598-1:2015 Luminaires. General requirements and tests
EC Declaration of Conformity
Technical Information
ON/OFF
Code
Description
Light Sources
Watt
Volts
Hz
Power Factor
Width (mm)
Length (mm)
EM 1 hr
EM 3 hrs
820-972 CYFELCO SUR 1LNS 12W 1990LM 4000K L30W60H55 1 12 220-240 50-60 0.97 300 600 820-996 820-704
820-973 CYFELCO SUR 1LNS 12W 1985LM 6500K L30W60H55 1 12 220-240 50-60 0.97 300 600 820-997 820-705
820-974 CYFELCO SUR 2LNS 23W 3980LM 4000K L30W60H55 2 23 220-240 50-60 0.97 300 600 820-998 820-706
820-975 CYFELCO SUR 2LNS 23W 3970LM 6500K L30W60H55 2 23 220-240 50-60 0.97 300 600 820-999 820-707
820-976 CYFELCO SUR 2LNS 23W 3980LM 4000K L60W60H55 2 23 220-240 50-60 0.97 300 600 820-700 820-708
820-977 CYFELCO SUR 2LNS 23W 3970LM 6500K L60W60H55 2 23 220-240 50-60 0.97 300 600 820-701 820-709
820-978 CYFELCO SUR 2LNS 23W 3980LM 4000K L30W120H55 2 23 220-240 50-60 0.97 300 600 820-702 820-710
820-979 CYFELCO SUR 2LNS 23W 3970LM 6500K L30W120H55 2 23 220-240 50-60 0.97 300 600 820-703 820-711
Dimming 1-10V
Code
Description
Light Sources
Watt
Volts
Hz
Power Factor
Width (mm)
Length (mm)
EM 1 hr
EM 3 hrs
820-988 CYFELCO SUR 1LNS 12W 1990LM 4000K L30W60H55 1-10V 1 12 220-240 50-60 0.97 300 600 820-712 820-720
820-989 CYFELCO SUR 1LNS 12W 1985LM 6500K L30W60H55 1-10V 1 12 220-240 50-60 0.97 300 600 820-713 820-721
820-990 CYFELCO SUR 2LNS 23W 3980LM 4000K L30W60H55 1-10V 2 23 220-240 50-60 0.97 300 600 820-714 820-722
820-991 CYFELCO SUR 2LNS 23W 3970LM 6500K L30W60H55 1-10V 2 23 220-240 50-60 0.97 300 600 820-715 820-723
820-992 CYFELCO SUR 2LNS 23W 3980LM 4000K L60W60H55 1-10V 2 23 220-240 50-60 0.97 300 600 820-716 820-724
820-993 CYFELCO SUR 2LNS 23W 3970LM 6500K L60W60H55 1-10V 2 23 220-240 50-60 0.97 300 600 820-717 820-725
820-994 CYFELCO SUR 2LNS 23W 3980LM 4000K L30W120H55 1-10V 2 23 220-240 50-60 0.97 300 600 820-718 820-726
820-995 CYFELCO SUR 2LNS 23W 3970LM 6500K L30W120H55 1-10V 2 23 220-240 50-60 0.97 300 600 820-719 820-727
DALI
Code
Description
Light Sources
Watt
Volts
Hz
Power Factor
Width (mm)
Length (mm)
EM 1 hr
EM 3 hrs
820-980 CYFELCO SUR 1LNS 12W 1990LM 4000K L30W60H55 DALI 1 12 220-240 50-60 0.97 300 600 820-728 820-736
820-981 CYFELCO SUR 1LNS 12W 1985LM 6500K L30W60H55 DALI 1 12 220-240 50-60 0.97 300 600 820-729 820-737
820-982 CYFELCO SUR 2LNS 23W 3980LM 4000K L30W60H55 DALI 2 23 220-240 50-60 0.97 300 600 820-730 820-738
820-983 CYFELCO SUR 2LNS 23W 3970LM 6500K L30W60H55 DALI 2 23 220-240 50-60 0.97 300 600 820-731 820-739
820-984 CYFELCO SUR 2LNS 23W 3980LM 4000K L60W60H55 DALI 2 23 220-240 50-60 0.97 300 600 820-732 820-740
820-985 CYFELCO SUR 2LNS 23W 3970LM 6500K L60W60H55 DALI 2 23 220-240 50-60 0.97 300 600 820-733 820-741
820-986 CYFELCO SUR 2LNS 23W 3980LM 4000K L30W120H55 DALI 2 23 220-240 50-60 0.97 300 600 820-734 820-742
820-987 CYFELCO SUR 2LNS 23W 3970LM 6500K L30W120H55 DALI 2 23 220-240 50-60 0.97 300 600 820-735 820-743
