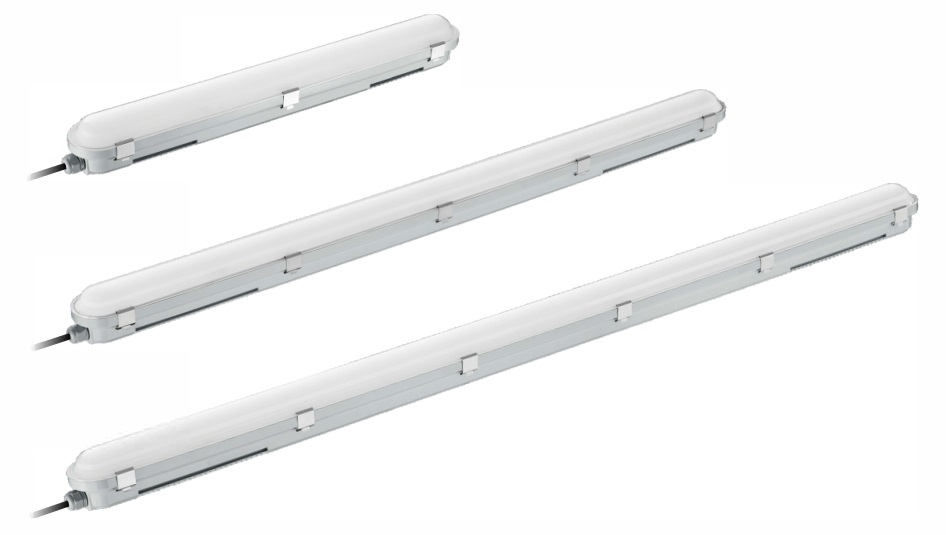

PREMIUM WEATHERPROOF LUMINAIRE WITH OPAL DIFFUSER |
|
|
High quality weatherproof luminaire with LED modules, for indoor and outdoor installation to withstand adverse climatic conditions.
Applications: |
Code |
Description |
Watt |
Volts |
Hz |
Power Factor |
CCT |
CRI |
IP |
IK |
Height (mm) |
Width (mm) |
Length (mm) |
EM 3 hrs |
| 951-057 | CYF3 WP18 150/W-S 840 | 11/13/15/18 | 220-240 | 50-60 | >0.9 | 4000K | >80 | IP65 | IK08 | 75 | 75 | 600 | -- |
| 951-058 | CYF3 WP36 150/W-S 840 | 20/25/30/36 | 220-240 | 50-60 | >0.9 | 4000K | >80 | IP65 | IK08 | 75 | 75 | 1200 | 951-063 |
| 951-059 | CYF3 WP50 150/W-S 840 | 28/35/42/50 | 220-240 | 50-60 | >0.9 | 4000K | >80 | IP65 | IK08 | 75 | 75 | 1500 | 951-064 |
| 951-060 | CYF3 WP18 150/W-S 865 | 11/13/15/18 | 220-240 | 50-60 | >0.9 | 6500K | >80 | IP65 | IK08 | 75 | 75 | 600 | -- |
| 951-061 | CYF3 WP36 150/W-S 865 | 20/25/30/36 | 220-240 | 50-60 | >0.9 | 6500K | >80 | IP65 | IK08 | 75 | 75 | 1200 | 951-065 |
| 951-062 | CYF3 WP50 150/W-S 865 | 28/35/42/50 | 220-240 | 50-60 | >0.9 | 6500K | >80 | IP65 | IK08 | 75 | 75 | 1500 | 951-066 |
Code |
Description |
Watt |
Volts |
Hz |
Power Factor |
CCT |
CRI |
IP |
IK |
Height (mm) |
Width (mm) |
Length (mm) |
EM 3 hrs |
| 951-067 | CYF3 WP18 150/W-S 840 DALI | 11/13/15/18 | 220-240 | 50-60 | >0.9 | 4000K | >80 | IP65 | IK08 | 75 | 75 | 600 | -- |
| 951-068 | CYF3 WP36 150/W-S 840 DALI | 20/25/30/36 | 220-240 | 50-60 | >0.9 | 4000K | >80 | IP65 | IK08 | 75 | 75 | 1200 | 951-073 |
| 951-069 | CYF3 WP50 150/W-S 840 DALI | 28/35/42/50 | 220-240 | 50-60 | >0.9 | 4000K | >80 | IP65 | IK08 | 75 | 75 | 1500 | 951-074 |
| 951-070 | CYF3 WP18 150/W-S 865 DALI | 11/13/15/18 | 220-240 | 50-60 | >0.9 | 6500K | >80 | IP65 | IK08 | 75 | 75 | 600 | -- |
| 951-071 | CYF3 WP36 150/W-S 865 DALI | 20/25/30/36 | 220-240 | 50-60 | >0.9 | 6500K | >80 | IP65 | IK08 | 75 | 75 | 1200 | 951-075 |
| 951-072 | CYF3 WP50 150/W-S 865 DALI | 28/35/42/50 | 220-240 | 50-60 | >0.9 | 6500K | >80 | IP65 | IK08 | 75 | 75 | 1500 | 951-076 |
| 2014/30/EU | Electromagnetic Compatibility Directive |
| 2014/35/EU | Low Voltage Directive |
| 2011/65/EU | Restriction of Hazardous Substances Directive (RoHS) |
| 2009/125/EU | Ecodesign Requirements for energy-related products |
| EN 60598-1:2015/A1:2018 | Luminaires part 1 General Requirements |
| EN 60598-2-1:1989 | Part 2: Particular requirements-Section 1 Fixed general purpose luminaires |
| EN IEC 55015:2019 | Limits and methods of measurement of radio disturbance characteristics of electrical lighting and similar equipment |
| EN 62493:2015 | Assessment of lighting equipment related to human exposure to electromagnetic fields |
| EN 61547:2009 | Equipment for general lighting purposes - EMC immunity requirements |
| EN IEC 61000-3-2:2019 | Electromagnetic compatibility (EMC) - Part 3-2: Limits - Limits for harmonic current emissions (equipment input current ≤16 A per phase) |
| EN 61000-3-3:2013+A1:2019 | Electromagnetic compatibility (EMC) - Part 3-3: Limits - Limitation of voltage changes, voltage fluctuations and flicker in public low-voltage supply systems, for equipment with rated current less or equal to 16 A per phase and not subject to conditional connection |
