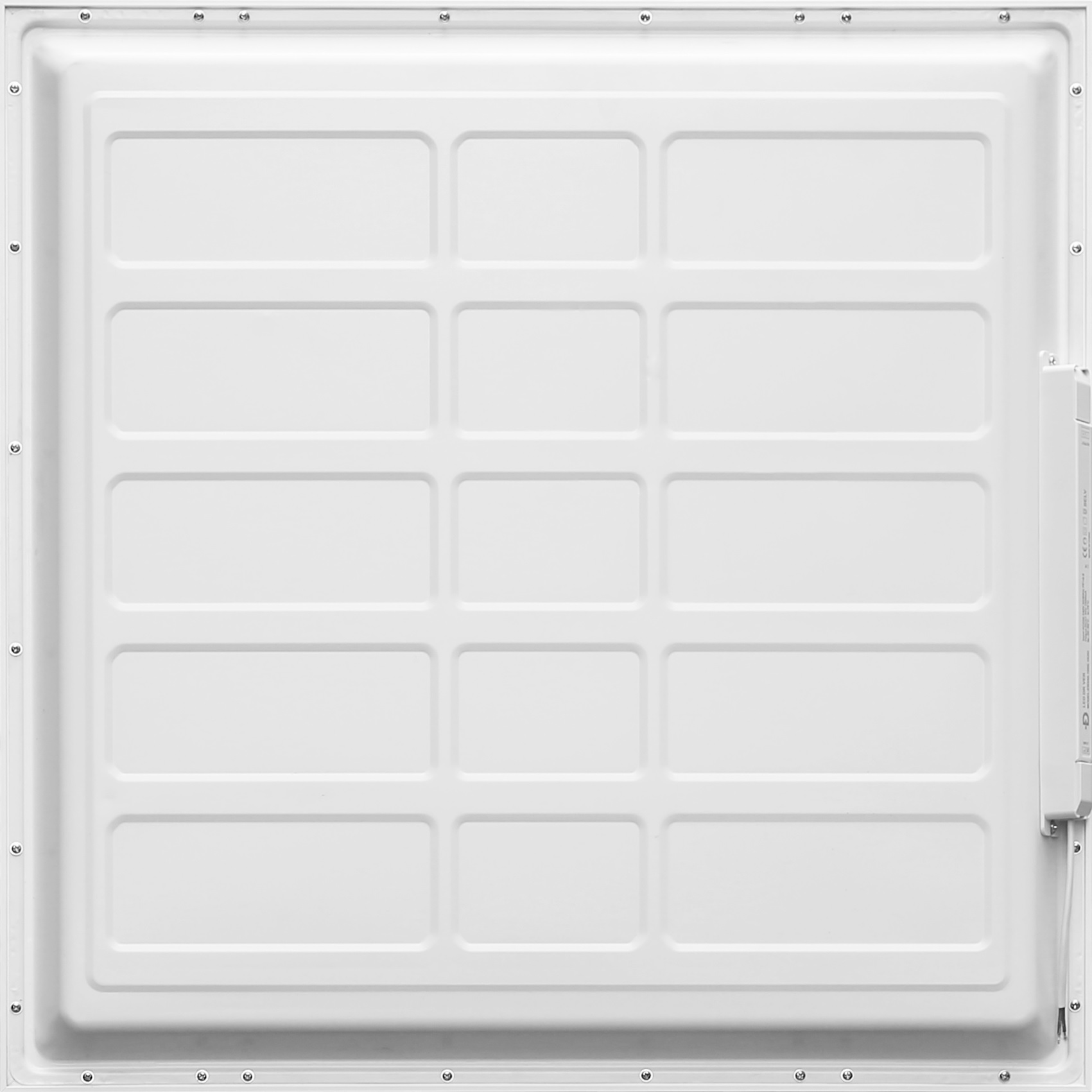

PREMIUM PLUS RECESSED LED PANEL

Description:
A range of recessed LED panels using high efficiency LED modules suitable for installation in T-bar exposed
suspended ceilings and plaster board ceilings.

Applications:
General indoor lighting for offices, public buildings shopping malls, schools, supermarkets etc.

Options on request:
DALI
Emergency 3 hours

Construction:
Base - Aluminium
Efficiency - 125lm/W
Gear - Constant Current Driver 220-240V/50-60Hz
Diffuser - PS
Warranty - 5 Years

Directives and Standards:
ISO 9001:2015 Quality Management System
2014/35/EU Low Voltage Directive
2014/30/EU Electromagnetic Compatibility Directive
2011/65/EU RoHS Restrictions of Hazardous Substances Directive
2009/125/EU Ecodesign Requirements for energy-related products

Technical Information
ON/OFF
Code
Description
No of LED Chips
Watt
Volts
Hz
Power Factor
CCT
CRI
Width (mm)
Length (mm)
EM 3 hrs
954-060 CYFELCO 4 REP60X60 4000Lm/25W 840 UGR19 64 30 220-240 50-60 >0.9 4000K >80 595 595 954-xxx
954-061 CYFELCO 4 REP60X60 4000Lm/25W 865 UGR19 64 30 220-240 50-60 >0.9 6500K >80 595 595 954-xxx
954-062 CYFELCO 4 REP30X120 4000Lm/25W 840 UGR19 64 30 220-240 50-60 >0.9 4000K >80 295 1195 954-xxx
954-063 CYFELCO 4 REP30X120 4000Lm/25W 865 UGR19 64 30 220-240 50-60 >0.9 6500K >80 295 1195 954-xxx
DALI/PUSH
Code
Description
No of LED Chips
Watt
Volts
Hz
Power Factor
CCT
CRI
Width (mm)
Length (mm)
EM 3 hrs
954-XXX CYFELCO 4 REP60X60 4000Lm/25W 840 UGR19 DL 64 30 220-240 50-60 >0.9 4000K >80 595 595 954-xxx
954-XXX CYFELCO 4 REP60X60 4000Lm/25W 865 UGR19 DL 64 30 220-240 50-60 >0.9 6500K >80 595 595 954-xxx
954-XXX CYFELCO 4 REP30X120 4000Lm/25W 840 UGR19 DL 64 30 220-240 50-60 >0.9 4000K >80 295 1195 954-xxx
954-XXX CYFELCO 4 REP30X120 4000Lm/25W 865 UGR19 DL 64 30 220-240 50-60 >0.9 6500K >80 295 1195 954-xxx
DIRECTIVES
2014/30/EU Electromagnetic Compatibility Directive
2014/35/EU Low Voltage Directive
2011/65/EU Restriction of Hazardous Substances Directive (RoHS)
2009/125/EU Ecodesign Requirements for energy-related products
APPLICABLE STANDARDS
EN 60598-1:2015 Luminaires part 1 General Requirements
EN 60598-2-1:1989 Part 2: Particular requirements-Section 1 Fixed general purpose luminaires
EN IEC 55015:2019+A11:2020 Limits and methods of measurement of radio disturbance characteristics of electrical lighting and similar equipment
EN 61547:2009 Equipment for general lighting purposes - EMC immunity requirements
EN IEC 61000-3-2:2019 Electromagnetic compatibility (EMC) - Part 3-2: Limits - Limits for harmonic current emissions (equipment input current ≤16 A per phase)
EN 61000-3-3:2013+A1:2019 Electromagnetic compatibility (EMC) - Part 3-3: Limits - Limitation of voltage changes, voltage fluctuations and flicker in public low-voltage supply systems, for equipment with rated current less or equal to 16 A per phase and not subject to conditional connection
INSTALLATION INSTRUCTIONS
