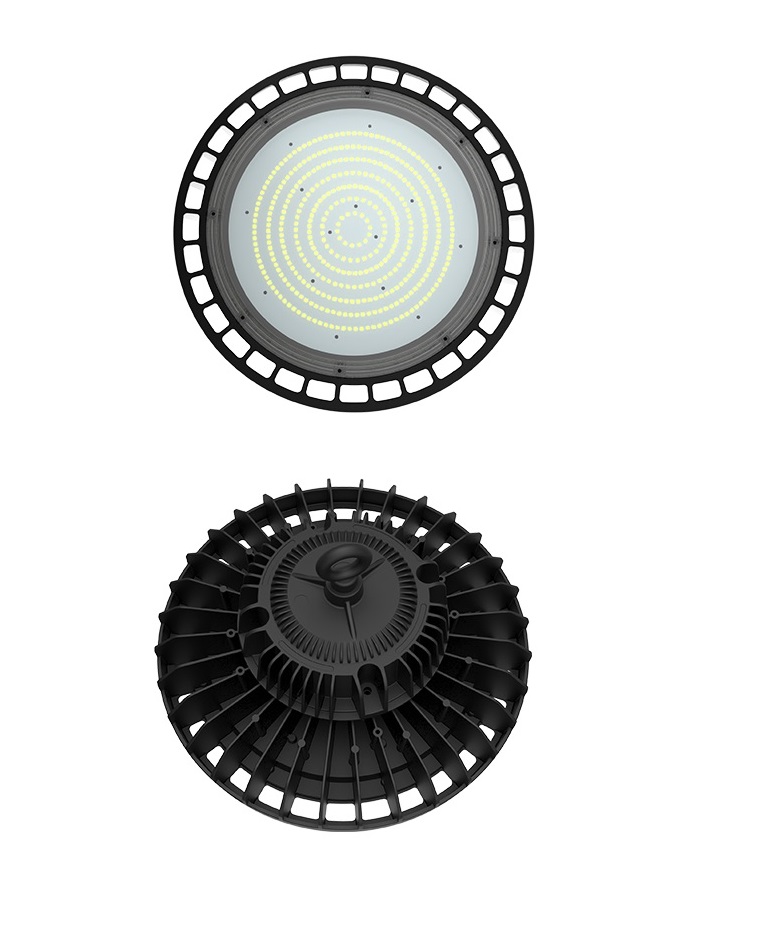

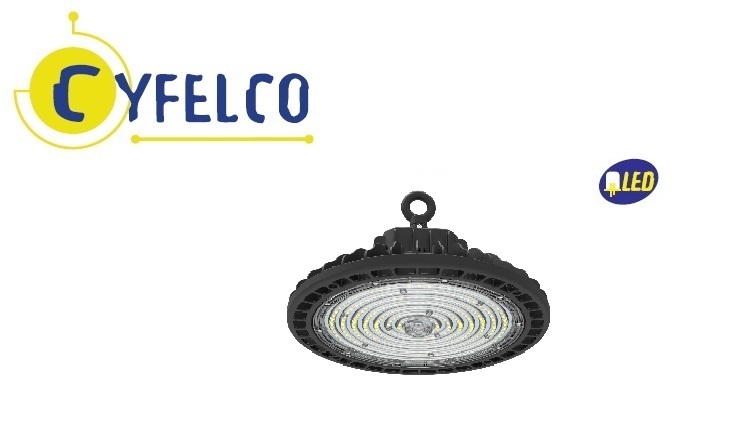

Cyfelco Round High Bay (RHB) is a powerful solution for environments with high ambient temperatures. Its high-end driver components, an enlarged heatsink as well as high quality LED chips assure a long lifespan and superior durability for warm environments from some industries.

The Cyfelco RHB is produced from aluminium and provides the perfect solution to some unique industrial projects. It complies to the following European Directives and Standards:
ISO 9001:2015 Quality Management System,
2014/35/EU Low Voltage Directive,
2014/30/EU Electromagnetic Compatibility Directive,
2011/65/EU RoHS Restrictions of Hazardous Substances Directive,

High efficiency up to 150Lm/W.
High Luminous Flux up to 30000 Lumens.
Specially designed for high temperature environments.
Heat dissipation performance suitable for areas up to 65oC ambient temperatures.
Industrial use due to IP65.
Extremely heat resistant driver technology.

We provide lighting solutions with the use of design and lighting software to achieve the lowest possible running and maintenance cost to minimize the level of the initial investment.

Options Upon Request:
Dimmable 1-10V
Emergency 1-3hrs

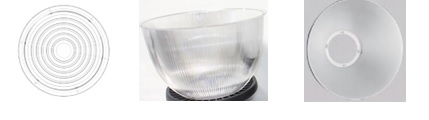

90o PC lens for 80W and 150W, Φ215*11.1mm
90o PC lens for 200W, Φ259.5*11.1mm
90o PC clear reflector for 80W and 150W, Φ310*370mm
90o PC clear reflector for 200W, Φ410*250mm
90o aluminium reflector 80W and 150W, Φ367*129.2mm
90o aluminium reflector 200W, Φ432.4*144.4mm

Product Information
TECHNICAL DATA
Code
Description
Nominal Voltage
(Lm/W)
Nominal Flux (Lumen)
Beam Angle
Ingress Protection
Impact Protection
CRI
Warranty
952-001 CYFELCO RHB 080W 840 AC100~277V, 50~60Hz 130 10400-11200 110o IP65 IK10 >80 5 YEARS
952-002 CYFELCO RHB 080W 865 AC100~277V, 50~60Hz 130 10400-11200 110o IP65 IK10 >80 5 YEARS
952-003 CYFELCO RHB 100W 840 AC100~277V, 50~60Hz 130 13000-14000 110o IP65 IK10 >80 5 YEARS
952-004 CYFELCO RHB 100W 865 AC100~277V, 50~60Hz 130 13000-14000 110o IP65 IK10 >80 5 YEARS
952-005 CYFELCO RHB 150W 840 AC100~277V, 50~60Hz 130 19500-21000 110o IP65 IK10 >80 5 YEARS
952-006 CYFELCO RHB 150W 865 AC100~277V, 50~60Hz 130 19500-21000 110o IP65 IK10 >80 5 YEARS
952-007 CYFELCO RHB 200W 840 AC100~277V, 50~60Hz 130 26000-28000 110o IP65 IK10 >80 5 YEARS
952-008 CYFELCO RHB 200W 865 AC100~277V, 50~60Hz 130 26000-28000 110o IP65 IK10 >80 5 YEARS
952-079 CYFELCO 3 RHB 080W 840 AC220~240V, 50~60Hz 130 10400-11200 110o IP65 IK10 >80 5 YEARS
952-080 CYFELCO 3 RHB 080W 865 AC220~240V, 50~60Hz 130 10400-11200 110o IP65 IK10 >80 5 YEARS
952-081 CYFELCO 3 RHB 100W 840 AC220~240V, 50~60Hz 130 13000-14000 110o IP65 IK10 >80 5 YEARS
952-082 CYFELCO 3 RHB 100W 865 AC220~240V, 50~60Hz 130 13000-14000 110o IP65 IK10 >80 5 YEARS
952-083 CYFELCO 3 RHB 150W 840 AC220~240V, 50~60Hz 130 19500-21000 110o IP65 IK10 >80 5 YEARS
952-084 CYFELCO 3 RHB 150W 865 AC220~240V, 50~60Hz 130 19500-21000 110o IP65 IK10 >80 5 YEARS
952-085 CYFELCO 3 RHB 200W 840 AC220~240V, 50~60Hz 130 26000-28000 110o IP65 IK10 >80 5 YEARS
952-086 CYFELCO 3 RHB 200W 865 AC220~240V, 50~60Hz 130 26000-28000 110o IP65 IK10 >80 5 YEARS
952-071 CYFELCO 2 RHB 080W 840 AC220~240V, 50~60Hz 130 10400-11200 110o IP65 IK10 >80 3 YEARS
952-072 CYFELCO 2 RHB 080W 865 AC220~240V, 50~60Hz 130 10400-11200 110o IP65 IK10 >80 3 YEARS
952-073 CYFELCO 2 RHB 100W 840 AC220~240V, 50~60Hz 130 13000-14000 110o IP65 IK10 >80 3 YEARS
952-074 CYFELCO 2 RHB 100W 865 AC220~240V, 50~60Hz 130 13000-14000 110o IP65 IK10 >80 3 YEARS
952-075 CYFELCO 2 RHB 150W 840 AC220~240V, 50~60Hz 130 19500-21000 110o IP65 IK10 >80 3 YEARS
952-076 CYFELCO 2 RHB 150W 865 AC220~240V, 50~60Hz 130 19500-21000 110o IP65 IK10 >80 3 YEARS
952-077 CYFELCO 2 RHB 200W 840 AC220~240V, 50~60Hz 130 26000-28000 110o IP65 IK10 >80 3 YEARS
952-078 CYFELCO 2 RHB 200W 865 AC220~240V, 50~60Hz 130 26000-28000 110o IP65 IK10 >80 3 YEARS
952-088 CYFELCO 3 RHB 80W 840 V2 AC220~240V, 50~60Hz 150 12000 120o IP65 IK10 >80 5 YEARS
952-089 CYFELCO 3 RHB 80W 865 V2 AC220~240V, 50~60Hz 150 12000 120o IP65 IK10 >80 5 YEARS
952-090 CYFELCO 3 RHB 100W 840 V2 AC220~240V, 50~60Hz 150 15000 120o IP65 IK10 >80 5 YEARS
952-091 CYFELCO 3 RHB 100W 865 V2 AC220~240V, 50~60Hz 150 15000 120o IP65 IK10 >80 5 YEARS
952-092 CYFELCO 3 RHB 150W 840 V2 AC220~240V, 50~60Hz 150 22500 120o IP65 IK10 >80 5 YEARS
952-093 CYFELCO 3 RHB 150W 865 V2 AC220~240V, 50~60Hz 150 22500 120o IP65 IK10 >80 5 YEARS
952-094 CYFELCO 3 RHB 200W 840 V2 AC220~240V, 50~60Hz 150 30000 120o IP65 IK10 >80 5 YEARS
952-095 CYFELCO 3 RHB 200W 865 V2 AC220~240V, 50~60Hz 150 30000 120o IP65 IK10 >80 5 YEARS
952-096 CYFELCO 2 RHB 80W 840 V2 AC220~240V, 50~60Hz 150 12000 120o IP65 IK10 >80 3 YEARS
952-097 CYFELCO 2 RHB 80W 865 V2 AC220~240V, 50~60Hz 150 12000 120o IP65 IK10 >80 3 YEARS
952-098 CYFELCO 2 RHB 100W 840 V2 AC220~240V, 50~60Hz 150 15000 120o IP65 IK10 >80 3 YEARS
952-099 CYFELCO 2 RHB 100W 865 V2 AC220~240V, 50~60Hz 150 15000 120o IP65 IK10 >80 3 YEARS
952-100 CYFELCO 2 RHB 150W 840 V2 AC220~240V, 50~60Hz 150 22500 120o IP65 IK10 >80 3 YEARS
952-101 CYFELCO 2 RHB 150W 865 V2 AC220~240V, 50~60Hz 150 22500 120o IP65 IK10 >80 3 YEARS
952-102 CYFELCO 2 RHB 200W 840 V2 AC220~240V, 50~60Hz 150 30000 120o IP65 IK10 >80 3 YEARS
952-103 CYFELCO 2 RHB 200W 865 V2 AC220~240V, 50~60Hz 150 30000 120o IP65 IK10 >80 3 YEARS
DIRECTIVES
2014/30/EU Electromagnetic Compatibility Directive
2014/35/EU Low Voltage Directive
2011/65/EU Restriction of Hazardous Substances Directive (RoHS)
2009/125/EU Ecodesign Requirements for energy-related products
APPLICABLE STANDARDS
EN 60598-1:2021+AMD11:2022 Luminaires part 1 General Requirements and Tests
EN 60598-2-1:2021 Part 2: Particular requirements-Section 1 Fixed general purpose luminaires
EN IEC 62031:2020+A11:2021 LED modules for general lighting. Safety specifications
EN IEC 55015:2019+A11:2020 Limits and methods of measurement of radio disturbance characteristics of electrical lighting and similar equipment
EN 61547:2023 Equipment for general lighting purposes - EMC immunity requirements
EN IEC 61000-3-2:2019+A1:2021 Electromagnetic compatibility (EMC) - Part 3-2: Limits - Limits for harmonic current emissions (equipment input current ≤16 A per phase)
EN 61000-3-3:2013+A1:2019+A2:2021 Electromagnetic compatibility (EMC) - Part 3-3: Limits - Limitation of voltage changes, voltage fluctuations and flicker in public low-voltage supply systems, for equipment with rated current less or equal to 16 A per phase and not subject to conditional connection
