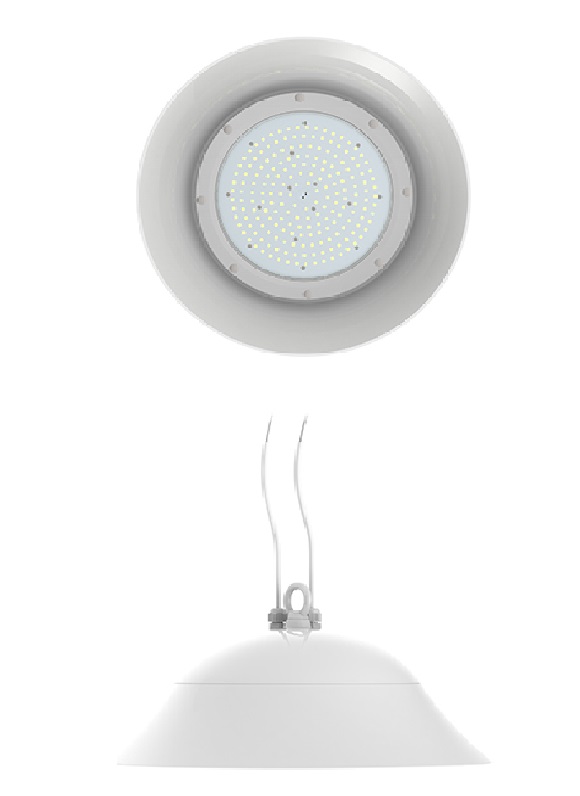

Cyfelco SRB is to engineered to address the requirements of the food processing industry and comply with FDA guidelines. The corrosion resistant and non-toxic aluminum exterior is completely smooth and easy to clean. Its IP69K ingress protection rating (protection against high temperature steam and high pressure water) allows for usage in areas with high humidity and makes it washdown capable. |
The Cyfelco SRB complies to the following European Directives and Standards: High efficiency up to 130Lm/W. |
We provide lighting solutions with the use of design and lighting software to achieve the lowest possible running and maintenance cost to minimize the level of the initial investment. Options Upon Request:Dimmable 1-10V Optional honeycomb reflector for glare reduction Built-in microwave sensor ZIGBEE |
|
Code |
Description |
Nominal Voltage |
(Lm/W) |
Nominal Flux (Lumen) |

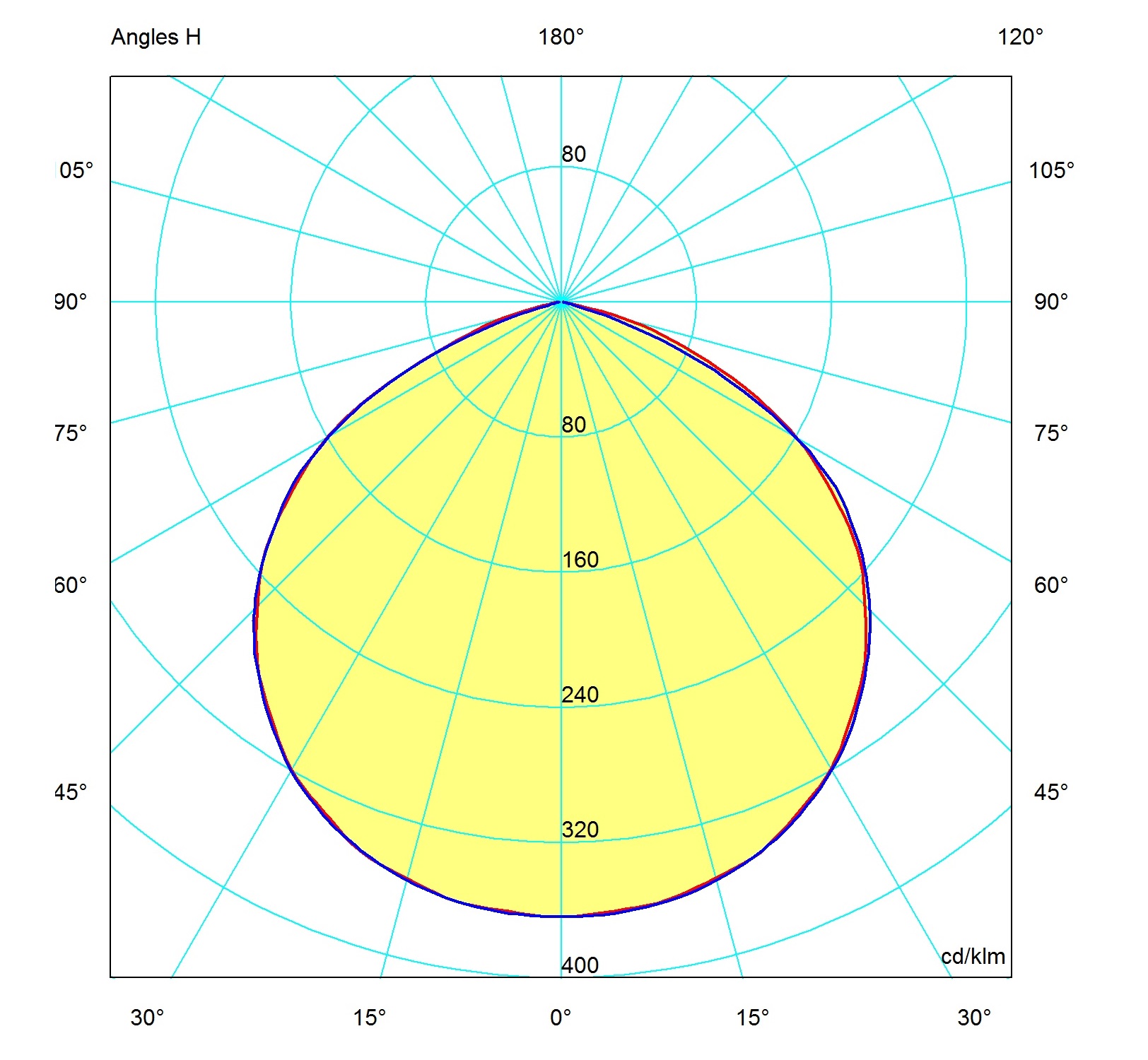

Beam Angle |
LED Quantity |
Ingress Protection |
Impact Protection |
CRI |
952-024 | CYFELCO SRB 100W 840 | AC100~277V, 50~60Hz | 130 | 13000 | 110° | 196 PCS, EMC 3030 | IP69K | IK10 | >80 |
952-020 | CYFELCO SRB 100W 840 <19 | AC100~277V, 50~60Hz | 130 | 13000 | 60° | 196 PCS, EMC 3030 | IP69K | IK10 | >80 |
952-021 | CYFELCO SRB 100W 850 | AC100~277V, 50~60Hz | 130 | 13000 | 110° | 196 PCS, EMC 3030 | IP69K | IK10 | >80 |
952-028 | CYFELCO SRB 100W 850 <19 | AC100~277V, 50~60Hz | 130 | 13000 | 60° | 196 PCS, EMC 3030 | IP69K | IK10 | >80 |
952-025 | CYFELCO SRB 150W 840 | AC100~277V, 50~60Hz | 130 | 19500 | 110° | 252 PCS, EMC 3030 | IP69K | IK10 | >80 |
952-022 | CYFELCO SRB 150W 840 <19 | AC100~277V, 50~60Hz | 130 | 19500 | 60° | 252 PCS, EMC 3030 | IP69K | IK10 | >80 |
952-023 | CYFELCO SRB 150W 850 | AC100~277V, 50~60Hz | 130 | 19500 | 110° | 252 PCS, EMC 3030 | IP69K | IK10 | >80 |
952-029 | CYFELCO SRB 150W 850 <19 | AC100~277V, 50~60Hz | 130 | 19500 | 60° | 252 PCS, EMC 3030 | IP69K | IK10 | >80 |
952-026 | CYFELCO SRB 200W 840 | AC100~277V, 50~60Hz | 130 | 26000 | 110° | 336 PCS, EMC 3030 | IP69K | IK10 | >80 |
952-030 | CYFELCO SRB 200W 840 <19 | AC100~277V, 50~60Hz | 130 | 26000 | 60° | 336 PCS, EMC 3030 | IP69K | IK10 | >80 |
952-027 | CYFELCO SRB 200W 850 | AC100~277V, 50~60Hz | 130 | 26000 | 110° | 336 PCS, EMC 3030 | IP69K | IK10 | >80 |
952-031 | CYFELCO SRB 200W 850 <19 | AC100~277V, 50~60Hz | 130 | 26000 | 60° | 336 PCS, EMC 3030 | IP69K | IK10 | >80 |
