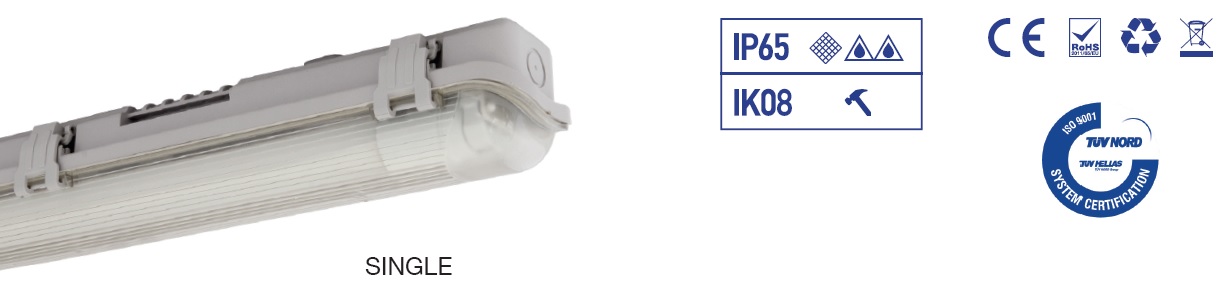

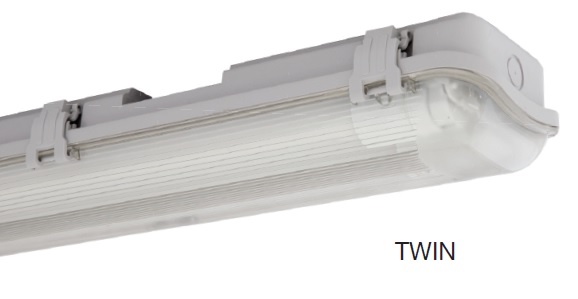

Weatherproof Luminaire designed for use with T8 LED Tubes. The luminaire is suitable for parking and outdoor areas where it provides the necessary weatherproof IP65 protection. The light fitting is prewired to operate double ended T8 LED Tubes of energy class A. Conversion to single ended T8 LED Tube operation can be achieved with the use of the included extra cable.
Material used for both the body and the diffuser is polycarbonate and the luminaire it is supplied with ceiling brackets and cable gland for easy installation.
On request stainless steel clips are available

Directives and Standards

ISO 9001:2015 Quality Management System
2014/35/EU Low Voltage Directive
2014/30/EU Electromagnetic Compatibility Directive
2011/65/EU RoHS Restrictions of Hazardous Substances Directive
EN 60598-1:2015 Luminaires General requirements and tests

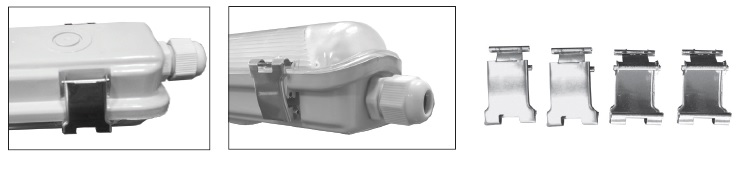

Stainless Steel Clips

Available on request

Code
Description
Nominal Length (mm)
No of Lamps
Included Lamps
IP Rating
IK Rating
Protection Class
Individual Box QTY
Master Box QTY
951-001 CYFELCO WP C118 RET LED 665 1X9W - IP65 IK08 CLASS II 1 20
951-002 CYFELCO WP C136 RET LED 1277 1X18W - IP65 IK08 CLASS II 1 12
951-003 CYFELCO WP C158 RET LED 1577 1X24W - IP65 IK08 CLASS II 1 12
951-004 CYFELCO WP C218 RET LED 665 2X9W - IP65 IK08 CLASS II 1 16
951-005 CYFELCO WP C236 RET LED 1277 2X18W - IP65 IK08 CLASS II 1 10
951-006 CYFELCO WP C258 RET LED 1577 22X24W - IP65 IK08 CLASS II 1 10
951-008 CYFELCO WP118 RET LED T8 65K 665 1X9W 901-002 IP65 IK08 CLASS II 1 20
951-009 CYFELCO WP136 RET LED T8 65K 1277 1X18W 901-004 IP65 IK08 CLASS II 1 12
951-010 CYFELCO WP158 RET LED T8 65K 1577 1X24W 901-006 IP65 IK08 CLASS II 1 12
951-011 CYFELCO WP218 RET LED T8 65K 665 2X9W 901-002 IP65 IK08 CLASS II 1 16
951-012 CYFELCO WP236 RET LED T8 65K 1277 2X18W 901-004 IP65 IK08 CLASS II 1 10
951-013 CYFELCO WP258 RET LED T8 65K 1577 2X24W 901-006 IP65 IK08 CLASS II 1 10
951-014 CYFELCO WP118 RET LED T8 40K 665 1X9W 901-001 IP65 IK08 CLASS II 1 20
951-015 CYFELCO WP136 RET LED T8 40K 1277 1X18W 901-003 IP65 IK08 CLASS II 1 12
951-016 CYFELCO WP158 RET LED T8 40K 1577 1X24W 901-005 IP65 IK08 CLASS II 1 12
951-017 CYFELCO WP218 RET LED T8 40K 665 2X9W 901-001 IP65 IK08 CLASS II 1 16
951-018 CYFELCO WP236 RET LED T8 40K 1277 2X18W 901-003 IP65 IK08 CLASS II 1 10
951-019 CYFELCO WP258 RET LED T8 40K 1577 2X24W 901-005 IP65 IK08 CLASS II 1 10
951-007 CYFELCO SS CLIPS C WP1

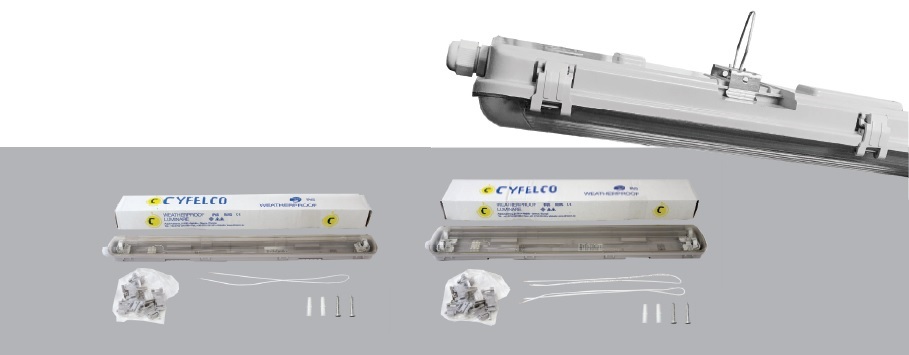

Single packaging

Light fitting with cable gland
Plastic clips
Ceiling brackets
Suspension Hooks
Wire for conversion to single ended Led T8 Lamps
Stainless Steel Clips

Available on request
