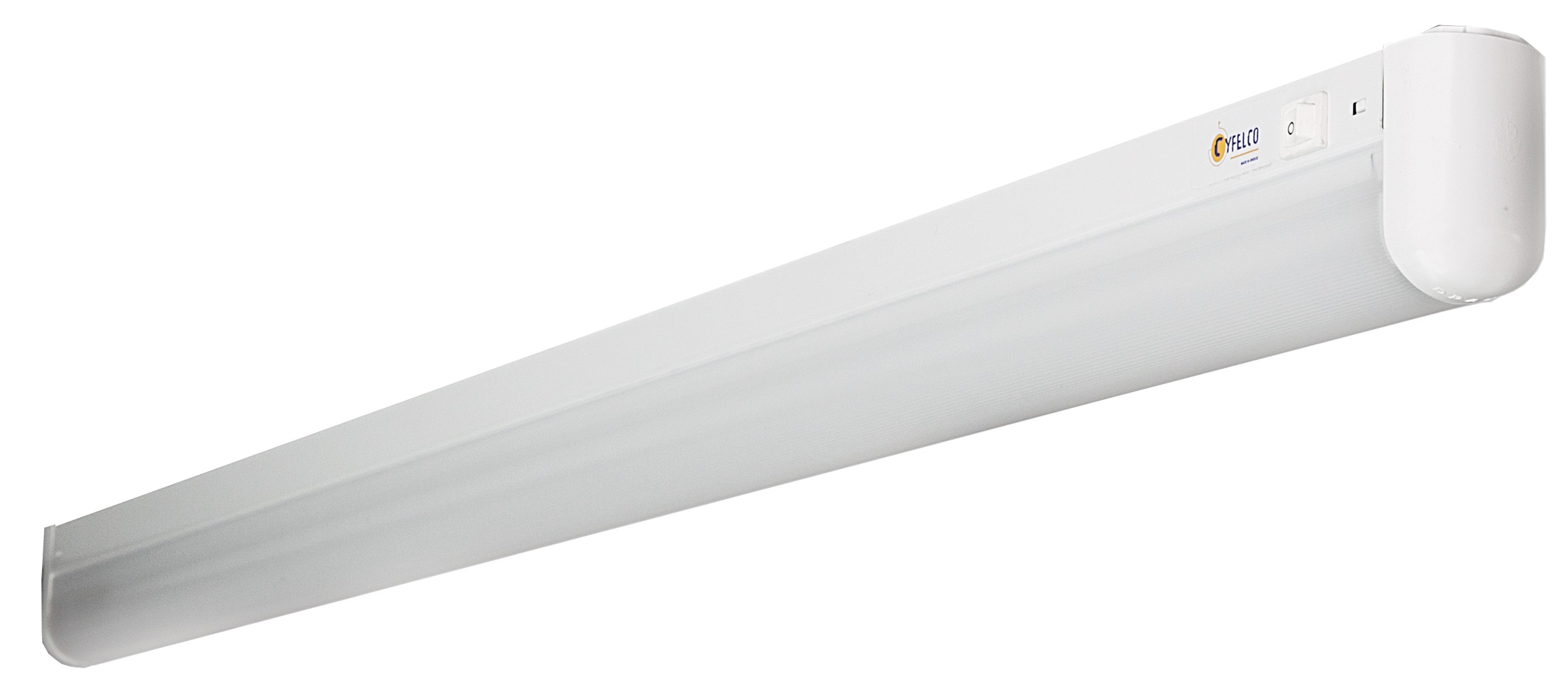

MIRROR LIGHT FOR RETROFIT T8 LED LAMPS

Description:
High quality mirror lighting for retrofit LED tubes type T8. It incorporates an on/off switch for operation.

Applications:
Bathrooms, corridors, utility rooms, cupboard underlight etc.

Construction:
Base and cover - Cold rolled steel 0,5mm with white epoxy powder coating for maximum reflection and excellent gloss finish
Wires - Single Core with Heat resistant PVC insulation at 105oC
Lamp holders - Made of Self extinguish polycarbonate resin with UV protection
Diffuser - From polycarbonate resin, flexible and durable

Directives and Standards:
ISO 9001:2015 Quality Management System
2014/35/EU Low Voltage Directive
2014/30/EU Electromagnetic Compatibility Directive
2011/65/EU RoHS Restrictions of Hazardous Substances Directive
EN 60598-1:2015 Luminaires. General requirements and tests

EC Declaration of Conformity

Technical Information
Mirror Light
Code
Description
No of Lamps
Length (mm)
Datasheet (pdf)
804-024 CYFELCO MIRRORL 060CM 1(T8)RET LED 1 640 Download
804-025 CYFELCO MIRRORL 090CM 1(T8)RET LED 1 950 Download
804-026 CYFELCO MIRRORL 120CM 1(T8)RET LED 1 1240 Download
804-027 CYFELCO MIRRORL 150CM 1(T8)RET LED 1 1540 Download
Mirror Light with ON/OFF Switch
Code
Description
No of Lamps
Length (mm)
Datasheet (pdf)
804-020 CYFELCO MIRRORL 060CM WS 1(T8)RET LED 1 640 Download
804-023 CYFELCO MIRRORL 090CM WS 1(T8)RET LED 1 950 Download
804-021 CYFELCO MIRRORL 120CM WS 1(T8)RET LED 1 1240 Download
804-022 CYFELCO MIRRORL 150CM WS 1(T8)RET LED 1 1540 Download
