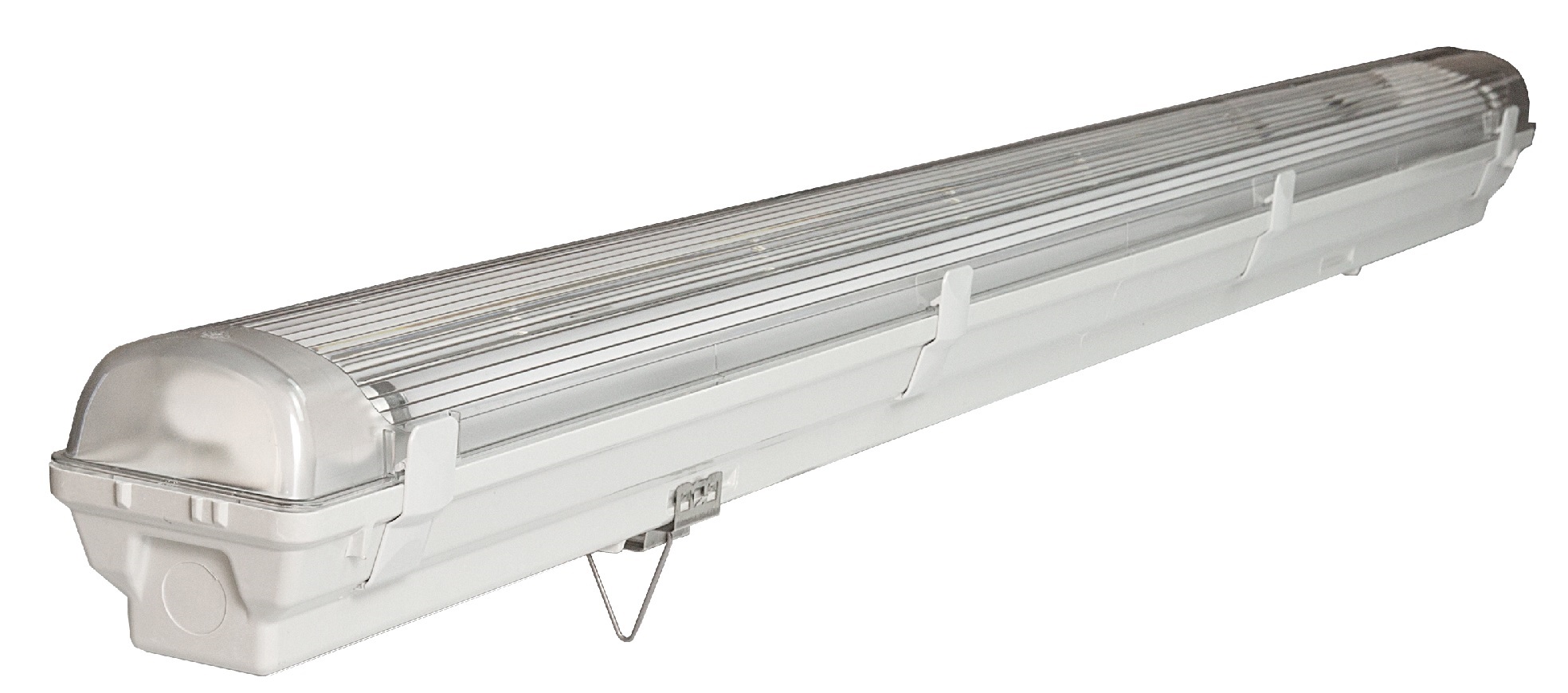

IP65 WEATHERPROOF LUMINAIRES FOR T5 LAMPS

Description:
High quality weatherproof luminaire, for
outdoor installation to withstand adverse climatic conditions.

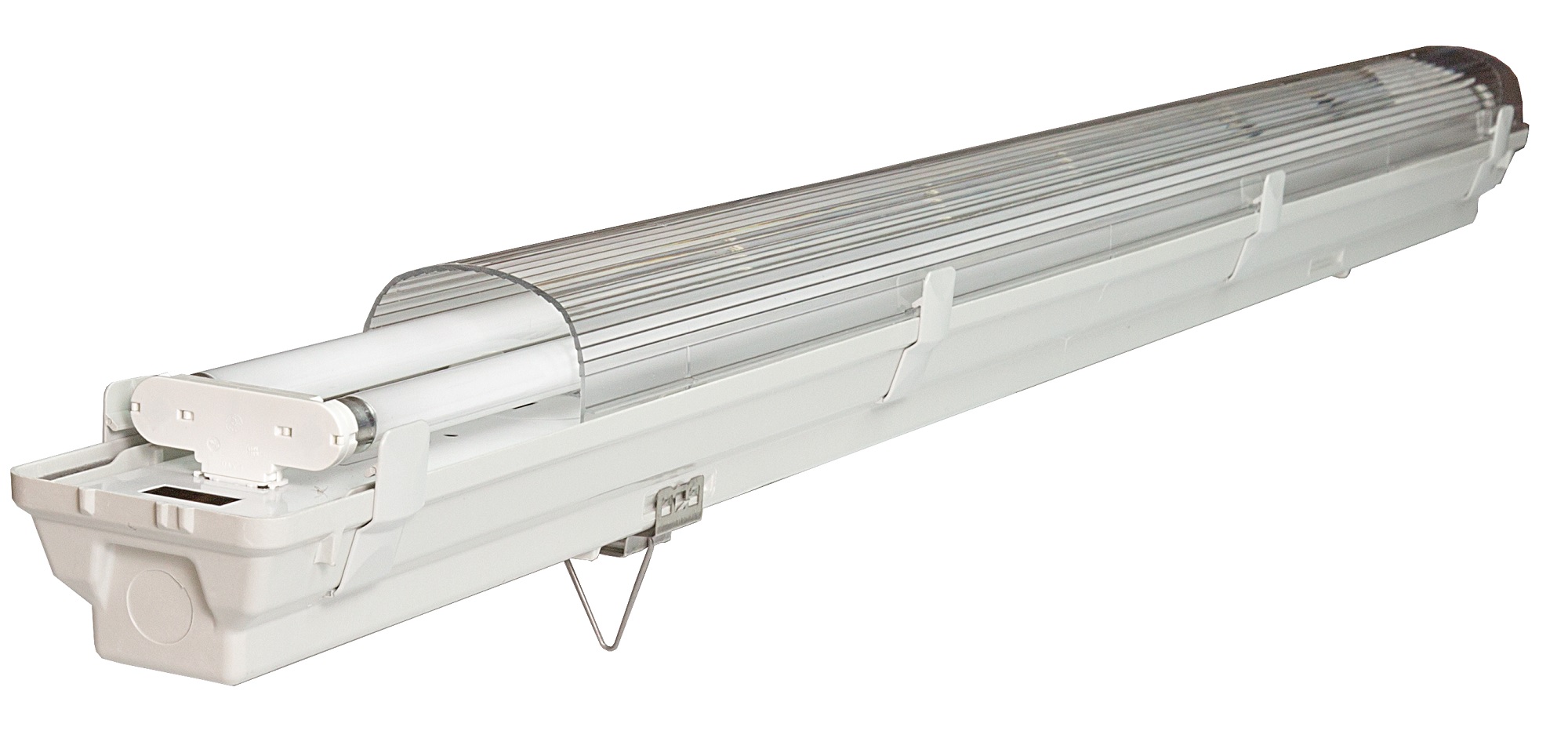

Construction:
Body - GRP Flame retardant glass-fibre reinforced polyester
Diffuser - Polycarbonate resin with UV resistant
Gear tray - Cold rolled steel 0,5mm with white epoxy powder coating for maximum reflection and excellent gloss finish
Gear - Electronic ballast 220-240V/50Hz
Wires - Single Core with Heat resistant PVC insulation at 105oC
Lamp holders - Self extinguish polycarbonate resin with UV protection
Ceiling brackets - Stainless Steel
Suspension hooks - Galvanized

Applications:
General lighting for kitchens, parking stations, warehouses, bakeries, malls, schools, supermarkets etc.

Options on request:
Dimming 1-10V
DALI
Emergency 2 or 3 Hours, Maintained or Non maintained
Stainless Steel Clips

Directives and Standards:
ISO 9001:2015 Quality Management System
2014/35/EU Low Voltage Directive
2014/30/EU Electromagnetic Compatibility Directive
2011/65/EU RoHS Restrictions of Hazardous Substances Directive
EN 60598-1:2015 Luminaires. General requirements and tests
EC Declaration of Conformity

Technical Information
ON/OFF
Code
Description
No of Lamps
Watt
Volts
Hz
Power Factor
Length (mm)
Maintained EM 2 hr
Maintained EM 3 hrs
Non Maintained EM 2 hr
Non Maintained EM 3 hrs
803-170 CYFELCO T5 WP 1X14W 1 14 220-240 50-60 Yes 669 803-242 803-256 803-270 803-284
803-171 CYFELCO T5 WP 1X24W 1 24 220-240 50-60 Yes 669 803-243 803-257 803-271 803-285
803-172 CYFELCO T5 WP 1X28W 1 28 220-240 50-60 Yes 1277 803-244 803-258 803-272 803-286
805-173 CYFELCO T5 WP 1X54W 1 54 220-240 50-60 Yes 1277 803-245 803-259 803-273 803-287
803-204 CYFELCO T5 WP 1X35W 1 35 220-240 50-60 Yes 1577 803-246 803-260 803-274 803-288
803-205 CYFELCO T5 WP 1X49W 1 49 220-240 50-60 Yes 1577 803-247 803-261 803-275 803-289
803-206 CYFELCO T5 WP 1X80W 1 80 220-240 50-60 Yes 1577 803-248 803-262 803-276 803-290
803-207 CYFELCO T5 WP 2X14W 2 14 220-240 50-60 Yes 669 803-249 803-263 803-277 803-291
803-208 CYFELCO T5 WP 2X24W 2 24 220-240 50-60 Yes 669 803-250 803-264 803-278 803-292
803-209 CYFELCO T5 WP 2X28W 2 28 220-240 50-60 Yes 1277 803-251 803-265 803-279 803-293
803-210 CYFELCO T5 WP 2X54W 2 54 220-240 50-60 Yes 1277 803-252 803-266 803-280 803-294
803-211 CYFELCO T5 WP 2X35W 2 35 220-240 50-60 Yes 1577 803-253 803-267 803-281 803-295
803-212 CYFELCO T5 WP 2X49W 2 49 220-240 50-60 Yes 1577 803-254 803-268 803-282 803-296
803-213 CYFELCO T5 WP 2X80W 2 80 220-240 50-60 Yes 1577 803-255 803-269 803-283 803-297
Dimming 1-10V
Code
Description
No of Lamps
Watt
Volts
Hz
Power Factor
Length (mm)
Maintained EM 2 hr
Maintained EM 3 hrs
Non Maintained EM 2 hr
Non Maintained EM 3 hrs
803-214 CYFELCO T5 WP 1X14W DIM 1 14 220-240 50-60 Yes 669 803-298 803-312 803-326 803-340
803-215 CYFELCO T5 WP 1X24W DIM 1 24 220-240 50-60 Yes 669 803-299 803-313 803-327 803-341
803-216 CYFELCO T5 WP 1X28W DIM 1 28 220-240 50-60 Yes 1277 803-300 803-314 803-328 803-342
805-217 CYFELCO T5 WP 1X54W DIM 1 54 220-240 50-60 Yes 1277 803-301 803-315 803-329 803-343
803-218 CYFELCO T5 WP 1X35W DIM 1 35 220-240 50-60 Yes 1577 803-302 803-316 803-330 803-344
803-219 CYFELCO T5 WP 1X49W DIM 1 49 220-240 50-60 Yes 1577 803-303 803-317 803-331 803-345
803-220 CYFELCO T5 WP 1X80W DIM 1 80 220-240 50-60 Yes 1577 803-304 803-318 803-332 803-346
803-221 CYFELCO T5 WP 2X14W DIM 2 14 220-240 50-60 Yes 669 803-305 803-319 803-333 803-347
803-222 CYFELCO T5 WP 2X24W DIM 2 24 220-240 50-60 Yes 669 803-306 803-320 803-334 803-348
803-223 CYFELCO T5 WP 2X28W DIM 2 28 220-240 50-60 Yes 1277 803-307 803-321 803-335 803-349
803-224 CYFELCO T5 WP 2X54W DIM 2 54 220-240 50-60 Yes 1277 803-308 803-322 803-336 803-350
803-225 CYFELCO T5 WP 2X35W DIM 2 35 220-240 50-60 Yes 1577 803-309 803-323 803-337 803-351
803-226 CYFELCO T5 WP 2X49W DIM 2 49 220-240 50-60 Yes 1577 803-310 803-324 803-338 803-352
803-227 CYFELCO T5 WP 2X80W DIM 2 80 220-240 50-60 Yes 1577 803-311 803-325 803-339 803-353
DALI
Code
Description
No of Lamps
Watt
Volts
Hz
Power Factor
Length (mm)
Maintained EM 2 hr
Maintained EM 3 hrs
Non Maintained EM 2 hr
Non Maintained EM 3 hrs
803-228 CYFELCO T5 WP 1X14W DALI 1 14 220-240 50-60 Yes 669 803-354 803-368 803-382 803-396
803-229 CYFELCO T5 WP 1X24W DALI 1 24 220-240 50-60 Yes 669 803-355 803-369 803-383 803-397
803-230 CYFELCO T5 WP 1X28W DALI 1 28 220-240 50-60 Yes 1277 803-356 803-370 803-384 803-398
805-231 CYFELCO T5 WP 1X54W DALI 1 54 220-240 50-60 Yes 1277 803-357 803-371 803-385 803-399
803-232 CYFELCO T5 WP 1X35W DALI 1 35 220-240 50-60 Yes 1577 803-358 803-372 803-386 803-400
803-233 CYFELCO T5 WP 1X49W DALI 1 49 220-240 50-60 Yes 1577 803-359 803-373 803-387 803-401
803-234 CYFELCO T5 WP 1X80W DALI 1 80 220-240 50-60 Yes 1577 803-360 803-374 803-388 803-402
803-235 CYFELCO T5 WP 2X14W DALI 2 14 220-240 50-60 Yes 669 803-361 803-375 803-389 803-403
803-236 CYFELCO T5 WP 2X24W DALI 2 24 220-240 50-60 Yes 669 803-362 803-376 803-390 803-404
803-237 CYFELCO T5 WP 2X28W DALI 2 28 220-240 50-60 Yes 1277 803-363 803-377 803-391 803-405
803-238 CYFELCO T5 WP 2X54W DALI 2 54 220-240 50-60 Yes 1277 803-364 803-378 803-392 803-406
803-239 CYFELCO T5 WP 2X35W DALI 2 35 220-240 50-60 Yes 1577 803-365 803-379 803-393 803-407
803-240 CYFELCO T5 WP 2X49W DALI 2 49 220-240 50-60 Yes 1577 803-366 803-380 803-394 803-408
803-241 CYFELCO T5 WP 2X80W DALI 2 80 220-240 50-60 Yes 1577 803-367 803-381 803-395 803-409
