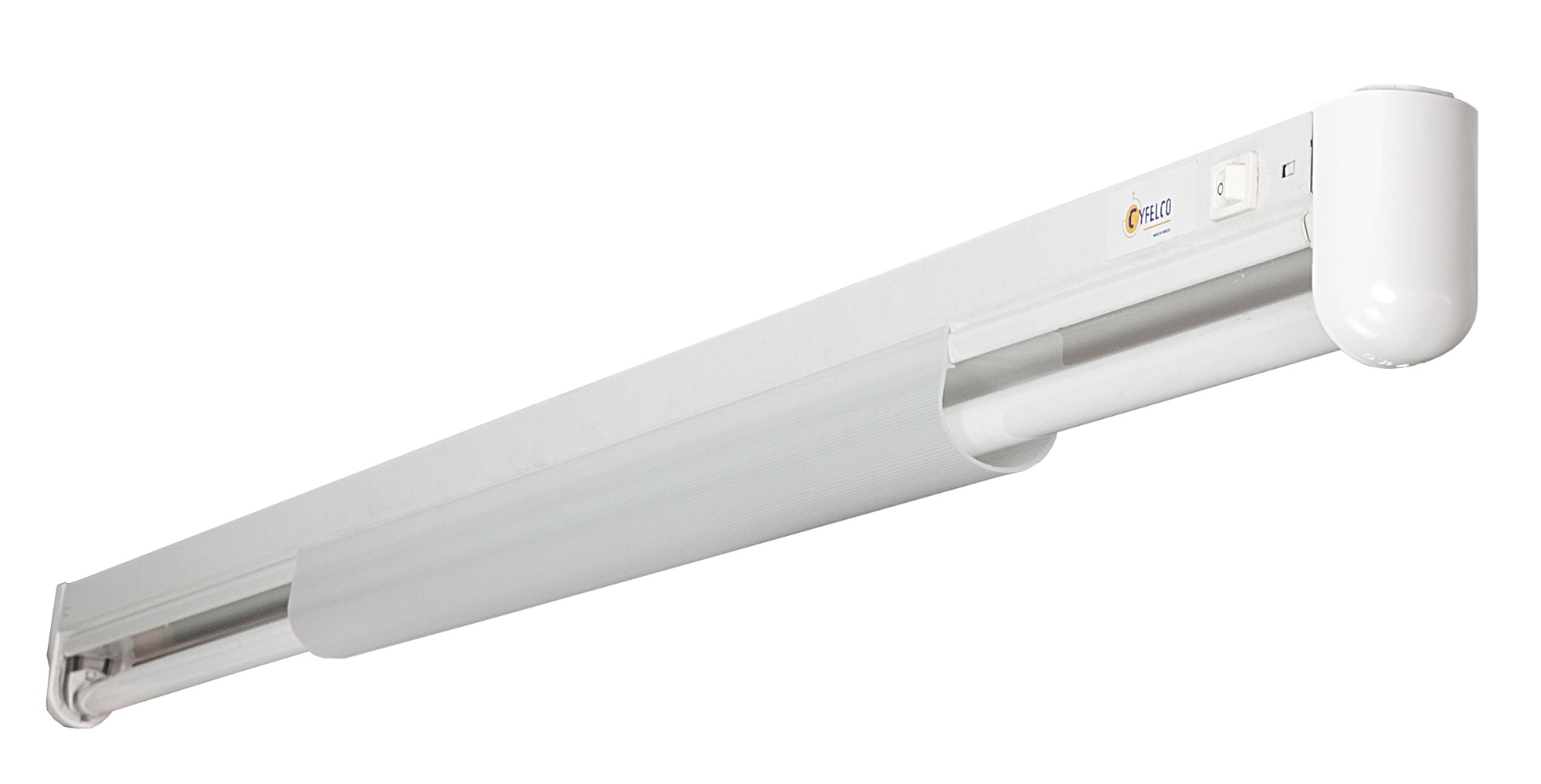

MIRROR LIGHT FOR T5 LAMPS





Description:
High quality mirror light for T5 lamps. It
incorporates an on/off switch for operation.

Construction:
Base and cover - Cold rolled steel 0,5mm with white epoxy powder coating for maximum reflection and excellent gloss finish
Gear - HF High frequency electronic ballast
Wires - Single Core with Heat resistant PVC insulation at 105oC
Lamp holders - Self extinguish polycarbonate resin with UV protection
Diffuser - From polycarbonate resin, flexible and durable

Applications:
Bathrooms, corridors, utility rooms, cupboard
underlight etc.

Options on request:
Dimming 1-10V
DALI
Emergency 2 or 3 Hours, Maintained or Non maintained

Directives and Standards:
ISO 9001:2015 Quality Management System
2014/35/EU Low Voltage Directive
2014/30/EU Electromagnetic Compatibility Directive
2011/65/EU RoHS Restrictions of Hazardous Substances Directive
EN 60598-1:2015 Luminaires. General requirements and tests

EC Declaration of Conformity

Technical Information
ON/OFF
Code
Description
No of Lamps
Watt
Volts
Hz
Power Factor
Length (mm)
Maintained EM 2 hr
Maintained EM 3 hrs
Non Maintained EM 2 hr
Non Maintained EM 3 hrs
804-066 CYFELCO MIRRORL 1X14W 1 14 220-240 50-60 Yes 610 - - - -
804-067 CYFELCO MIRRORL 1X24W 1 24 220-240 50-60 Yes 610 - - - -
804-068 CYFELCO MIRRORL 1X21W 1 21 220-240 50-60 Yes 875 804-077 804-086 804-095 804-104
804-069 CYFELCO MIRRORL 1X39W 1 39 220-240 50-60 Yes 875 804-078 804-087 804-096 804-105
804-070 CYFELCO MIRRORL 1X28W 1 28 220-240 50-60 Yes 1175 804-079 804-088 804-097 804-106
804-071 CYFELCO MIRRORL 1X54W 1 54 220-240 50-60 Yes 1175 804-080 804-089 804-098 804-107
804-072 CYFELCO MIRRORL 1X35W 1 35 220-240 50-60 Yes 1475 804-081 804-090 804-099 804-108
804-073 CYFELCO MIRRORL 1X49W 1 49 220-240 50-60 Yes 1475 804-082 804-091 804-100 804-109
804-074 CYFELCO MIRRORL 1X80W 1 80 220-240 50-60 Yes 1475 804-083 804-092 804-101 804-110
Dimming 1-10V
Code
Description
No of Lamps
Watt
Volts
Hz
Power Factor
Length (mm)
Maintained EM 2 hr
Maintained EM 3 hrs
Non Maintained EM 2 hr
Non Maintained EM 3 hrs
804-111 CYFELCO MIRRORL 1X14W DIM 1 14 220-240 50-60 Yes 610 - - - -
804-112 CYFELCO MIRRORL 1X24W DIM 1 24 220-240 50-60 Yes 610 - - - -
804-113 CYFELCO MIRRORL 1X21W DIM 1 21 220-240 50-60 Yes 875 804-122 804-131 804-140 804-149
804-114 CYFELCO MIRRORL 1X39W DIM 1 39 220-240 50-60 Yes 875 804-123 804-132 804-141 804-150
804-115 CYFELCO MIRRORL 1X28W DIM 1 28 220-240 50-60 Yes 1175 804-124 804-133 804-142 804-151
804-116 CYFELCO MIRRORL 1X54W DIM 1 54 220-240 50-60 Yes 1175 804-125 804-134 804-143 804-152
804-117 CYFELCO MIRRORL 1X35W DIM 1 35 220-240 50-60 Yes 1475 804-126 804-135 804-144 804-153
804-118 CYFELCO MIRRORL 1X49W DIM 1 49 220-240 50-60 Yes 1475 804-127 804-136 804-145 804-154
804-119 CYFELCO MIRRORL 1X80W DIM 1 80 220-240 50-60 Yes 1475 804-128 804-137 804-146 804-155
DALI
Code
Description
No of Lamps
Watt
Volts
Hz
Power Factor
Length (mm)
Maintained EM 2 hr
Maintained EM 3 hrs
Non Maintained EM 2 hr
Non Maintained EM 3 hrs
804-156 CYFELCO MIRRORL 1X14W DALI 1 14 220-240 50-60 Yes 610 - - - -
804-157 CYFELCO MIRRORL 1X24W DALI 1 24 220-240 50-60 Yes 610 - - - -
804-158 CYFELCO MIRRORL 1X21W DALI 1 21 220-240 50-60 Yes 875 804-167 804-176 804-185 804-194
804-159 CYFELCO MIRRORL 1X39W DALI 1 39 220-240 50-60 Yes 875 804-168 804-177 804-186 804-195
804-160 CYFELCO MIRRORL 1X28W DALI 1 28 220-240 50-60 Yes 1175 804-169 804-178 804-187 804-196
804-161 CYFELCO MIRRORL 1X54W DALI 1 54 220-240 50-60 Yes 1175 804-170 804-179 804-188 804-197
804-162 CYFELCO MIRRORL 1X35W DALI 1 35 220-240 50-60 Yes 1475 804-171 804-180 804-189 804-198
804-163 CYFELCO MIRRORL 1X49W DALI 1 49 220-240 50-60 Yes 1475 804-172 804-181 804-190 804-199
804-164 CYFELCO MIRRORL 1X80W DALI 1 80 220-240 50-60 Yes 1475 804-173 804-182 804-191 804-200
