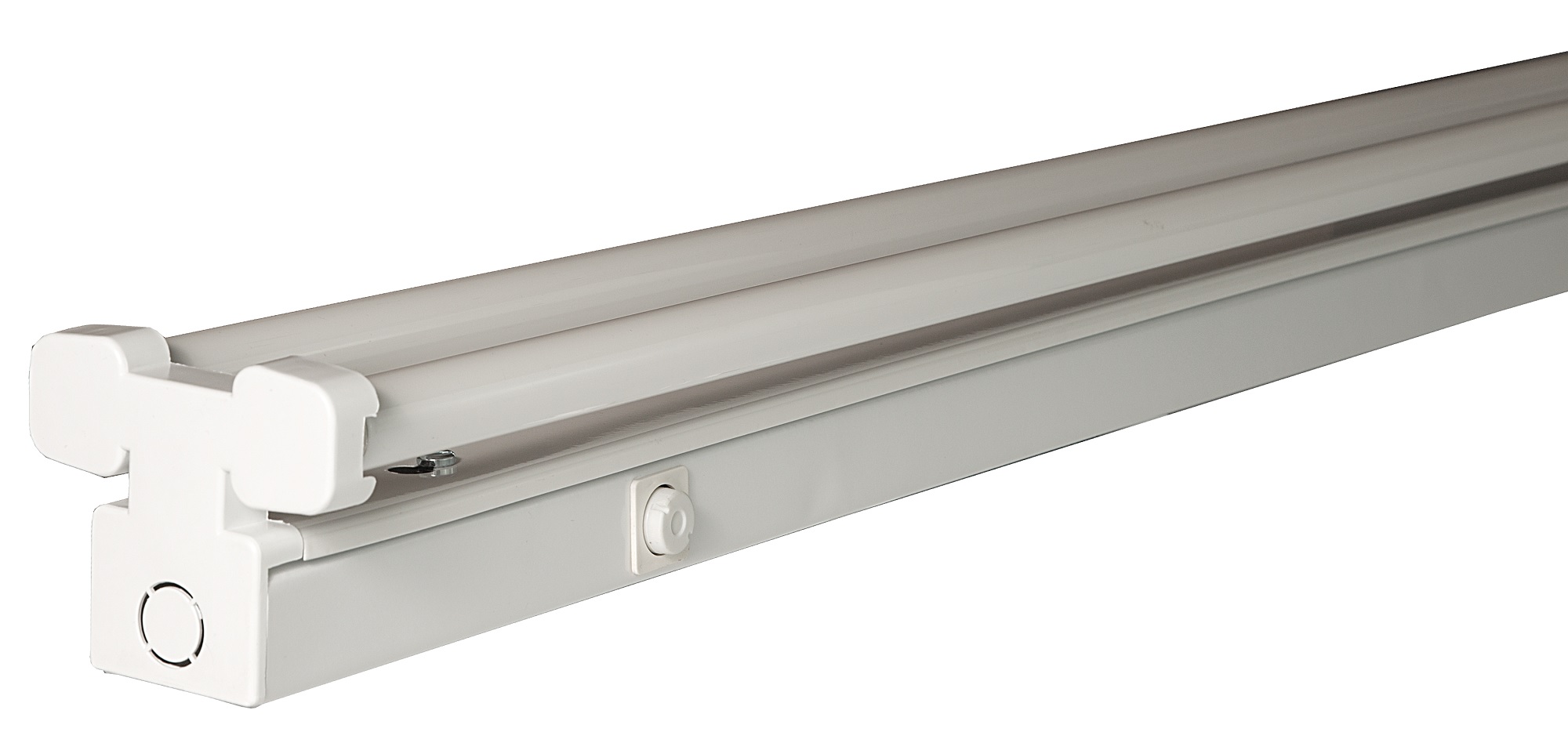

TRADITIONAL BRITISH BATTEN FOR T8 LAMPS



Description:
Traditional British batten of high quality for T8 lamps with pin-pin lamp holder

Construction:
Base and cover - Cold rolled steel 0,5mm with white epoxy powder coating for maximum reflection and excellent gloss finish
Gear - Magnetic ballast 230V/50Hz
Wires - Single Core with Heat resistant PVC insulation at 105oC
Lamp holders and Starter Holders- Made of Self extinguish polycarbonate resin with UV protection
Applications:
General indoor light for offices, public buildings, commercial shops, schools, supermarkets etc.

Options on request:
HPF With Capacitor
HF High Frequency Gear
Dimmable
DALI
Emergency 2 or 3 Hours, maintained or non maintained

Directives and Standards:
ISO 9001:2015 Quality Management System
2014/35/EU Low Voltage Directive
2014/30/EU Electromagnetic Compatibility Directive
2011/65/EU RoHS Restrictions of Hazardous Substances Directive
EN 60598-1:2015 Luminaires. General requirements and tests
EC Declaration of Conformity

Technical Information
ON/OFF - Magnetic Ballast
Code
Description
No of Lamps
Watt
Volts
Hz
Capacitor (μf)
Length (mm)
Maintained EM 2 hr
Maintained EM 3 hrs
Non Maintained EM 2 hr
Non Maintained EM 3 hrs
802-015 CYFELCO B 1X18W LPF 1 18 230 50 0.1 615 802-430 802-438 802-446 802-454
802-425 CYFELCO B 1X36mW LPF 1 30 230 50 0.1 920 802-431 802-439 802-447 802-455
802-016 CYFELCO B 1X36W LPF 1 36 230 50 0.1 1225 802-432 802-440 802-448 802-456
802-017 CYFELCO B 1X58W LPF 1 58 230 50 0.1 1525 802-433 802-441 802-449 802-457
802-018 CYFELCO B 2X18W LPF 2 18 230 50 0.1 625 802-434 802-442 802-450 802-458
802-426 CYFELCO B 2X30mW LPF 2 30 230 50 0.1 920 802-435 802-443 802-451 802-459
802-019 CYFELCO B 2X36W LPF 2 36 230 50 0.1 1225 802-436 802-444 802-452 802-460
802-020 CYFELCO B 2X58W LPF 2 58 230 50 0.1 1525 802-437 802-445 802-453 802-461
ON/OFF - MAGNETIC BALLAST WITH POWER FACTOR CORRECTION
Code
Description
No of Lamps
Watt
Volts
Hz
Power Factor
Length (mm)
Maintained EM 2 hr
Maintained EM 3 hrs
Non Maintained EM 2 hr
Non Maintained EM 3 hrs
802-030 CYFELCO B 1X18W HPF 1 18 230 50 Yes 615 802-462 802-470 802-478 802-486
802-428 CYFELCO B 1X30mW HPF 1 30 230 50 Yes 920 802-463 802-471 802-479 802-487
802-010 CYFELCO B 1X36W HPF 1 36 230 50 Yes 1225 802-464 802-472 802-480 802-488
802-011 CYFELCO B 1X58W HPF 1 58 230 50 Yes 1525 802-465 802-473 802-481 802-489
802-012 CYFELCO B 2X18W HPF 2 18 230 50 Yes 615 802-466 802-474 802-482 802-490
802-429 CYFELCO B 2X30mW HPF 2 30 230 50 Yes 920 802-467 802-475 802-483 802-491
802-013 CYFELCO B 2X36W HPF 2 36 230 50 Yes 1225 802-468 802-476 802-484 802-492
802-014 CYFELCO B 2X58W HPF 2 58 230 50 Yes 1525 802-469 802-477 802-485 802-493
ON/OFF - ELECTRONIC GEAR
Code
Description
No of Lamps
Watt
Volts
Hz
Power Factor
Length (mm)
Maintained EM 2 hr
Maintained EM 3 hrs
Non Maintained EM 2 hr
Non Maintained EM 3 hrs
802-494 CYFELCO B 1X18W HF 1 18 220-240 50-60 Yes 615 802-502 802-510 802-518 802-526
802-495 CYFELCO B 1X30mW HF 1 30 220-240 50-60 Yes 920 802-503 802-511 802-519 802-527
802-496 CYFELCO B 1X36W HF 1 36 220-240 50-60 Yes 1225 802-504 802-512 802-520 802-528
802-497 CYFELCO B 1X58W HF 1 58 220-240 50-60 Yes 1525 802-505 802-513 802-521 802-529
802-498 CYFELCO B 2X18W HF 2 18 220-240 50-60 Yes 615 802-506 802-514 802-522 802-530
802-499 CYFELCO B 2X30mW HF 2 30 220-240 50-60 Yes 920 802-507 802-515 802-523 802-531
802-500 CYFELCO B 2X36W HF 2 36 220-240 50-60 Yes 1225 802-508 802-516 802-524 802-532
802-501 CYFELCO B 2X58W HF 2 58 220-240 50-60 Yes 1525 802-509 802-517 802-525 802-533
Dimming 1-10V
Code
Description
No of Lamps
Watt
Volts
Hz
Power Factor
Length (mm)
Maintained EM 2 hr
Maintained EM 3 hrs
Non Maintained EM 2 hr
Non Maintained EM 3 hrs
802-534 CYFELCO B 1X18W DIM 1 18 220-240 50-60 Yes 615 802-542 802-550 802-558 802-566
802-535 CYFELCO B 1X30mW DIM 1 30 220-240 50-60 Yes 920 802-543 802-551 802-559 802-567
802-536 CYFELCO B 1X36W DIM 1 36 220-240 50-60 Yes 1225 802-544 802-552 802-560 802-568
802-537 CYFELCO B 1X58W DIM 1 58 220-240 50-60 Yes 1525 802-545 802-553 802-561 802-569
802-538 CYFELCO B 2X18W DIM 2 18 220-240 50-60 Yes 615 802-546 802-554 802-562 802-570
802-539 CYFELCO B 2X30mW DIM 2 30 220-240 50-60 Yes 920 802-547 802-555 802-563 802-571
802-540 CYFELCO B 2X36W DIM 2 36 220-240 50-60 Yes 1225 802-548 802-556 802-564 802-572
802-541 CYFELCO B 2X58W DIM 2 58 220-240 50-60 Yes 1525 802-549 802-557 802-565 802-573
DALI
Code
Description
No of Lamps
Watt
Volts
Hz
Power Factor
Length (mm)
Maintained EM 2 hr
Maintained EM 3 hrs
Non Maintained EM 2 hr
Non Maintained EM 3 hrs
802-574 CYFELCO B 1X18W DALI 1 18 220-240 50-60 Yes 615 802-582 802-590 802-598 802-606
802-575 CYFELCO B 1X30mW DALI 1 30 220-240 50-60 Yes 920 802-583 802-591 802-599 802-607
802-576 CYFELCO B 1X36W DALI 1 36 220-240 50-60 Yes 1225 802-584 802-592 802-600 802-608
802-577 CYFELCO B 1X58W DALI 1 58 220-240 50-60 Yes 1525 802-585 802-593 802-601 802-609
802-578 CYFELCO B 2X18W DALI 2 18 220-240 50-60 Yes 615 802-586 802-594 802-602 802-610
802-579 CYFELCO B 2X30mW DALI 2 30 220-240 50-60 Yes 920 802-587 802-595 802-603 802-611
802-580 CYFELCO B 2X36W DALI 2 36 220-240 50-60 Yes 1225 802-588 802-596 802-604 802-612
802-581 CYFELCO B 2X58W DALI 2 58 220-240 50-60 Yes 1525 802-589 802-597 802-605 802-613
