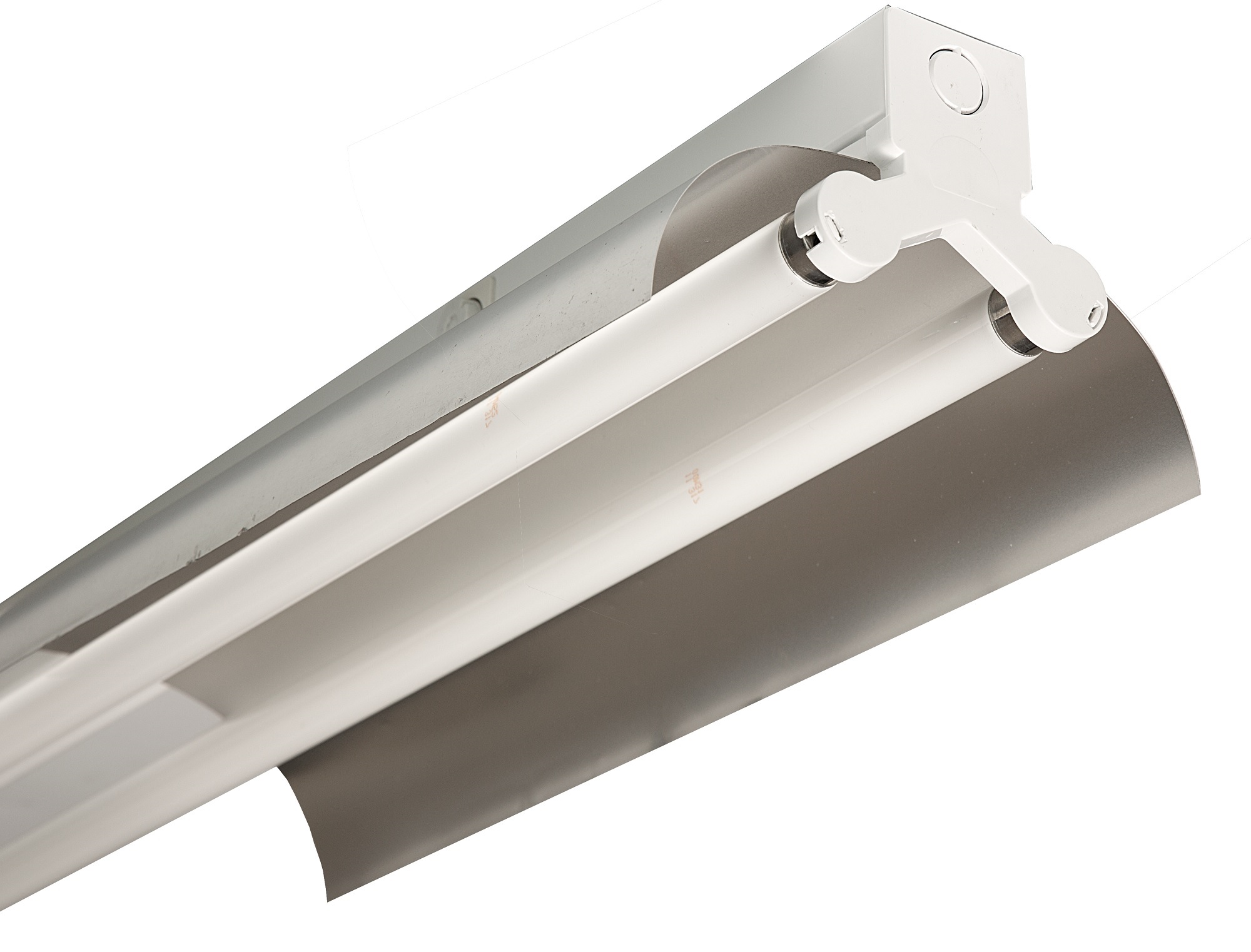

STANDARD BATTEN FOR T8 LAMPS



Description:
Standard batten of high quality for T8 lamps with rotating lamp holder

Construction:
Base and cover - Cold rolled steel 0,5mm with white epoxy powder coating for maximum reflection and excellent gloss finish
Gear - Magnetic ballast 230V/50Hz
Wires - Single Core with Heat resistant PVC insulation at 105oC
Lamp holders and Starter Holders- Made of Self extinguish polycarbonate resin with UV protection
Applications:
General indoor light for offices, public buildings, commercial shops, schools, supermarkets etc.

Options on request:
HPF With Capacitor
HF High Frequency Gear
Dimmable
DALI
Emergency 2 or 3 Hours, maintained or non maintained

Directives and Standards:
ISO 9001:2015 Quality Management System
2014/35/EU Low Voltage Directive
2014/30/EU Electromagnetic Compatibility Directive
2011/65/EU RoHS Restrictions of Hazardous Substances Directive
EN 60598-1:2015 Luminaires. General requirements and tests
EC Declaration of Conformity

Technical Information
ON/OFF - Magnetic Ballast
Code
Description
No of Lamps
Watt
Volts
Hz
Capacitor (μf)
Length (mm)
Maintained EM 2 hr
Maintained EM 3 hrs
Non Maintained EM 2 hr
Non Maintained EM 3 hrs
802-700 CYFELCO BS 1X18W LPF 1 18 230 50 0.1 610 802-740 802-748 802-756 802-764
802-701 CYFELCO BS1X36mW LPF 1 36 230 50 0.1 990 802-741 802-749 802-757 802-765
802-702 CYFELCO BS 1X36W LPF 1 36 230 50 0.1 1220 802-742 802-750 802-758 802-766
802-703 CYFELCO BS 1X58W LPF 1 58 230 50 0.1 1520 802-743 802-751 802-759 802-767
802-704 CYFELCO BS 2X18W LPF 2 18 230 50 0.1 610 802-744 802-752 802-760 802-768
802-705 CYFELCO BS 2X36mW LPF 2 36 230 50 0.1 990 802-745 802-753 802-761 802-769
802-706 CYFELCO BS 2X36W LPF 2 36 230 50 0.1 1220 802-746 802-754 802-762 802-770
802-707 CYFELCO BS 2X58W LPF 2 58 230 50 0.1 1520 802-747 802-755 802-763 802-771
ON/OFF - MAGNETIC BALLAST WITH POWER FACTOR CORRECTION
Code
Description
No of Lamps
Watt
Volts
Hz
Power Factor
Length (mm)
Maintained EM 2 hr
Maintained EM 3 hrs
Non Maintained EM 2 hr
Non Maintained EM 3 hrs
802-708 CYFELCO BS 1X18W HPF 1 18 230 50 Yes 610 802-772 802-780 802-788 802-796
802-709 CYFELCO BS 1X36mW HPF 1 36 230 50 Yes 990 802-773 802-781 802-789 802-797
802-710 CYFELCO BS 1X36W HPF 1 36 230 50 Yes 1220 802-774 802-782 802-790 802-798
802-711 CYFELCO BS 1X58W HPF 1 58 230 50 Yes 1520 802-775 802-783 802-791 802-799
802-712 CYFELCO BS 2X18W HPF 2 18 230 50 Yes 610 802-776 802-784 802-792 802-800
802-713 CYFELCO BS 2X36mW HPF 2 36 230 50 Yes 990 802-777 802-785 802-793 802-801
802-714 CYFELCO BS 2X36W HPF 2 36 230 50 Yes 1220 802-778 802-786 802-794 802-802
802-715 CYFELCO BS 2X58W HPF 2 58 230 50 Yes 1520 802-779 802-787 802-795 802-803
ON/OFF - ELECTRONIC GEAR
Code
Description
No of Lamps
Watt
Volts
Hz
Power Factor
Length (mm)
Maintained EM 2 hr
Maintained EM 3 hrs
Non Maintained EM 2 hr
Non Maintained EM 3 hrs
802-716 CYFELCO BS 1X18W HF 1 18 220-240 50-60 Yes 610 802-804 802-812 802-820 802-828
802-717 CYFELCO BS 1X36mW HF 1 36 220-240 50-60 Yes 990 802-805 802-813 802-821 802-829
802-718 CYFELCO BS 1X36W HF 1 36 220-240 50-60 Yes 1220 802-806 802-814 802-822 802-830
802-719 CYFELCO BS 1X58W HF 1 58 220-240 50-60 Yes 1520 802-807 802-815 802-823 802-831
802-720 CYFELCO BS 2X18W HF 2 18 220-240 50-60 Yes 610 802-808 802-816 802-824 802-832
802-721 CYFELCO BS 2X36mW HF 2 36 220-240 50-60 Yes 990 802-809 802-817 802-825 802-833
802-722 CYFELCO BS 2X36W HF 2 36 220-240 50-60 Yes 1220 802-810 802-818 802-826 802-834
802-723 CYFELCO BS 2X58W HF 2 58 220-240 50-60 Yes 1520 802-811 802-819 802-827 802-835
Dimming 1-10V
Code
Description
No of Lamps
Watt
Volts
Hz
Power Factor
Length (mm)
Maintained EM 2 hr
Maintained EM 3 hrs
Non Maintained EM 2 hr
Non Maintained EM 3 hrs
802-724 CYFELCO BS 1X18W DIM 1 18 220-240 50-60 Yes 610 802-836 802-844 802-852 802-860
802-725 CYFELCO BS 1X36mW DIM 1 36 220-240 50-60 Yes 990 802-837 802-845 802-853 802-861
802-726 CYFELCO BS 1X36W DIM 1 36 220-240 50-60 Yes 1220 802-838 802-846 802-854 802-862
802-727 CYFELCO BS 1X58W DIM 1 58 220-240 50-60 Yes 1520 802-839 802-847 802-855 802-863
802-728 CYFELCO BS 2X18W DIM 2 18 220-240 50-60 Yes 610 802-840 802-848 802-856 802-864
802-729 CYFELCO BS 2X36mW DIM 2 36 220-240 50-60 Yes 990 802-841 802-849 802-857 802-865
802-730 CYFELCO BS 2X36W DIM 2 36 220-240 50-60 Yes 1220 802-842 802-850 802-858 802-866
802-731 CYFELCO BS 2X58W DIM 2 58 220-240 50-60 Yes 1520 802-843 802-851 802-859 802-867
DALI
Code
Description
No of Lamps
Watt
Volts
Hz
Power Factor
Length (mm)
Maintained EM 2 hr
Maintained EM 3 hrs
Non Maintained EM 2 hr
Non Maintained EM 3 hrs
802-732 CYFELCO BS 1X18W DALI 1 18 220-240 50-60 Yes 610 802-868 802-876 802-884 802-892
802-733 CYFELCO BS 1X36mW DALI 1 36 220-240 50-60 Yes 990 802-869 802-877 802-885 802-893
802-734 CYFELCO BS 1X36W DALI 1 36 220-240 50-60 Yes 1220 802-870 802-878 802-886 802-894
802-735 CYFELCO BS 1X58W DALI 1 58 220-240 50-60 Yes 1520 802-871 802-879 802-887 802-895
802-736 CYFELCO BS 2X18W DALI 2 18 220-240 50-60 Yes 610 802-872 802-880 802-888 802-896
802-737 CYFELCO BS 2X36mW DALI 2 36 220-240 50-60 Yes 990 802-873 802-881 802-889 802-897
802-738 CYFELCO BS 2X36W DALI 2 36 220-240 50-60 Yes 1220 802-874 802-882 802-890 802-898
802-739 CYFELCO BS 2X58W DALI 2 58 220-240 50-60 Yes 1520 802-875 802-883 802-891 802-899
