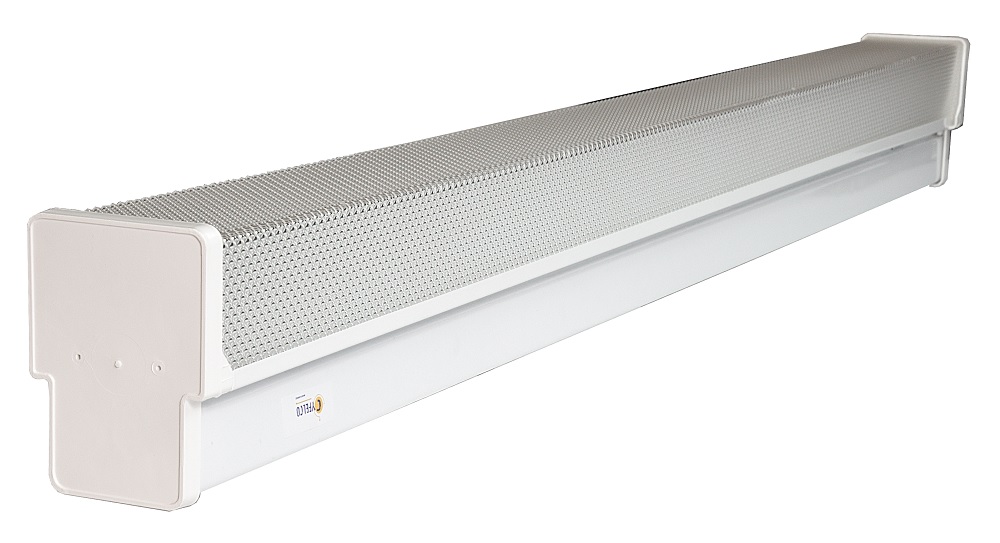

BRITISH BATTEN WITH DIFFUSER FOR RETROFIT LED T8 LAMPS

Description:
British batten of high quality for retrofit led T8 lamps with Diffuser

Applications:
General indoor light for offices, public buildings, commercial shops, schools, supermarkets etc.

Construction:
Base and cover - Cold rolled steel 0,5mm with white epoxy powder coating for maximum reflection and excellent gloss finish
Reflector - White Painted
Diffuser - PMMA
Wires - Single Core with Heat resistant PVC insulation at 105oC
Lamp holders - Made of Self extinguish polycarbonate resin with UV protection

Directives and Standards:
ISO 9001:2015 Quality Management System
2014/35/EU Low Voltage Directive
2014/30/EU Electromagnetic Compatibility Directive
2011/65/EU RoHS Restrictions of Hazardous Substances Directive
EN 60598-1:2015 Luminaires. General requirements and tests

EC Declaration of Conformity

Technical Information
Code
Description
No of Lamps
Length (mm)
Datasheet (pdf)
809-840 CYFELCO BD 060CM 1(T8) RET LED 1 610 Download
809-839 CYFELCO BD 120CM 1(T8) RET LED 1 1200 Download
809-838 CYFELCO BD 150CM 1(T8) RET LED 1 1510 Download
809-837 CYFELCO BD 060CM 2(T8) RET LED 2 610 Download
809-835 CYFELCO BD 120CM 2(T8) RET LED 2 1200 Download
809-836 CYFELCO BD 150CM 2(T8) RET LED 2 1510 Download
