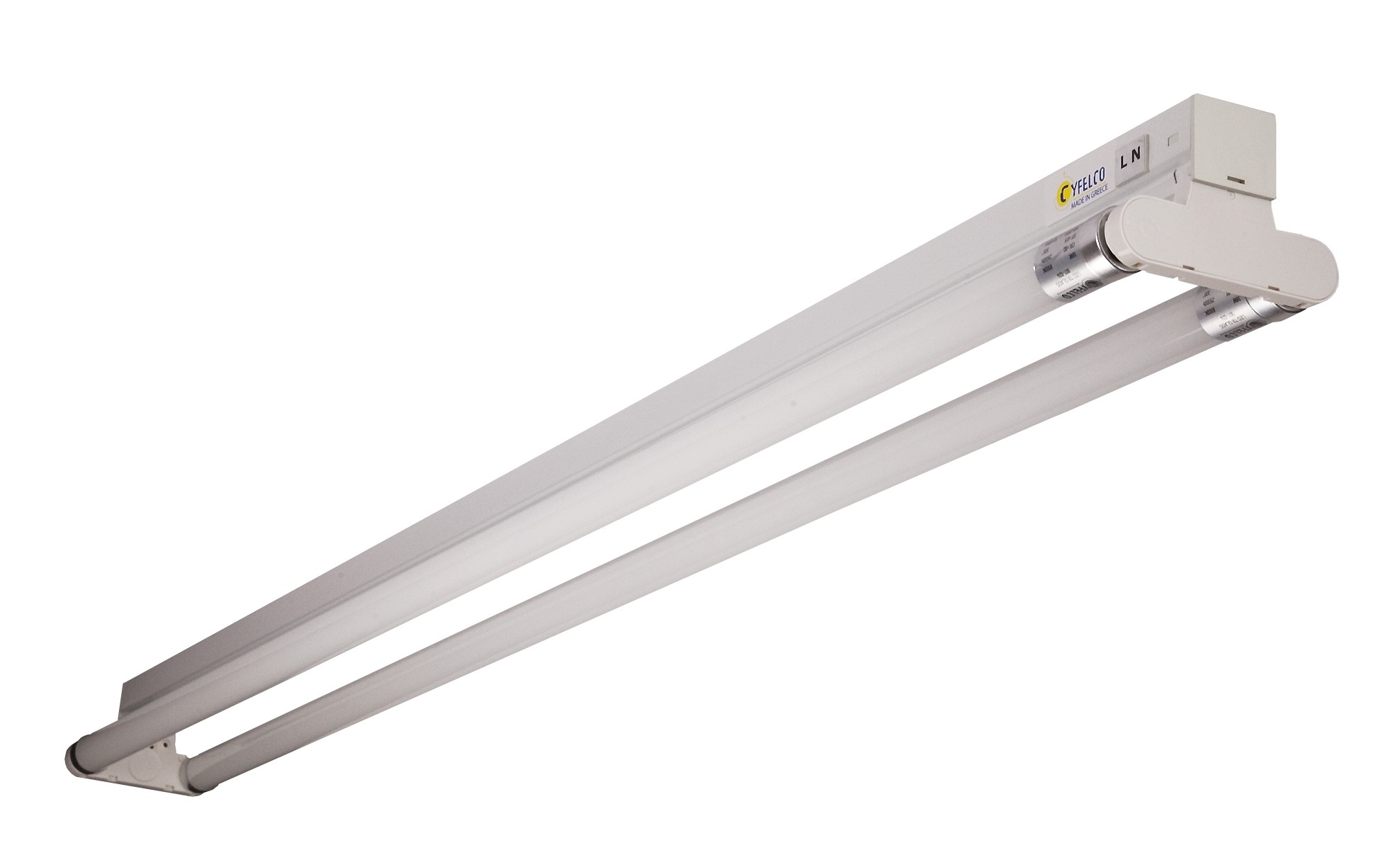

SLIM LINE BATTEN FOR RETROFIT LED T8 LAMPS

Description:
Standard batten of high quality for retrofit T8 lamps with rotating lamp holder

Applications:
General indoor light for offices, public buildings, commercial shops, schools, supermarkets etc.

Construction:
Base and cover - Cold rolled steel 0,5mm with white epoxy powder coating for maximum reflection and excellent
gloss finish
Wires - Single Core with Heat resistant PVC insulation at 105oC
Lamp holders - Self extinguish polycarbonate resin with UV protection

Directives and Standards:
ISO 9001:2015 Quality Management System
2014/35/EU Low Voltage Directive
2014/30/EU Electromagnetic Compatibility Directive
2011/65/EU RoHS Restrictions of Hazardous Substances Directive
EN 60598-1:2015 Luminaires. General requirements and tests

EC Declaration of Conformity

Technical Information
Code
Description
No of Lamps
Length (mm)
Datasheet (pdf)
802-060 CYFELCO SL 2F 0.6 1xT8LED 1 621 Download
802-061 CYFELCO SL 4F 1.2 1xT8LED 1 1230 Download
802-062 CYFELCO SL 5F 1.5 1xT8LED 1 1530 Download
802-063 CYFELCO SL 2F 0.6 2xT8LED 2 621 Download
802-064 CYFELCO SL 4F 1.2 2xT8LED 2 1230 Download
802-065 CYFELCO SL 5F 1.5 2xT8LED 2 1530 Download
